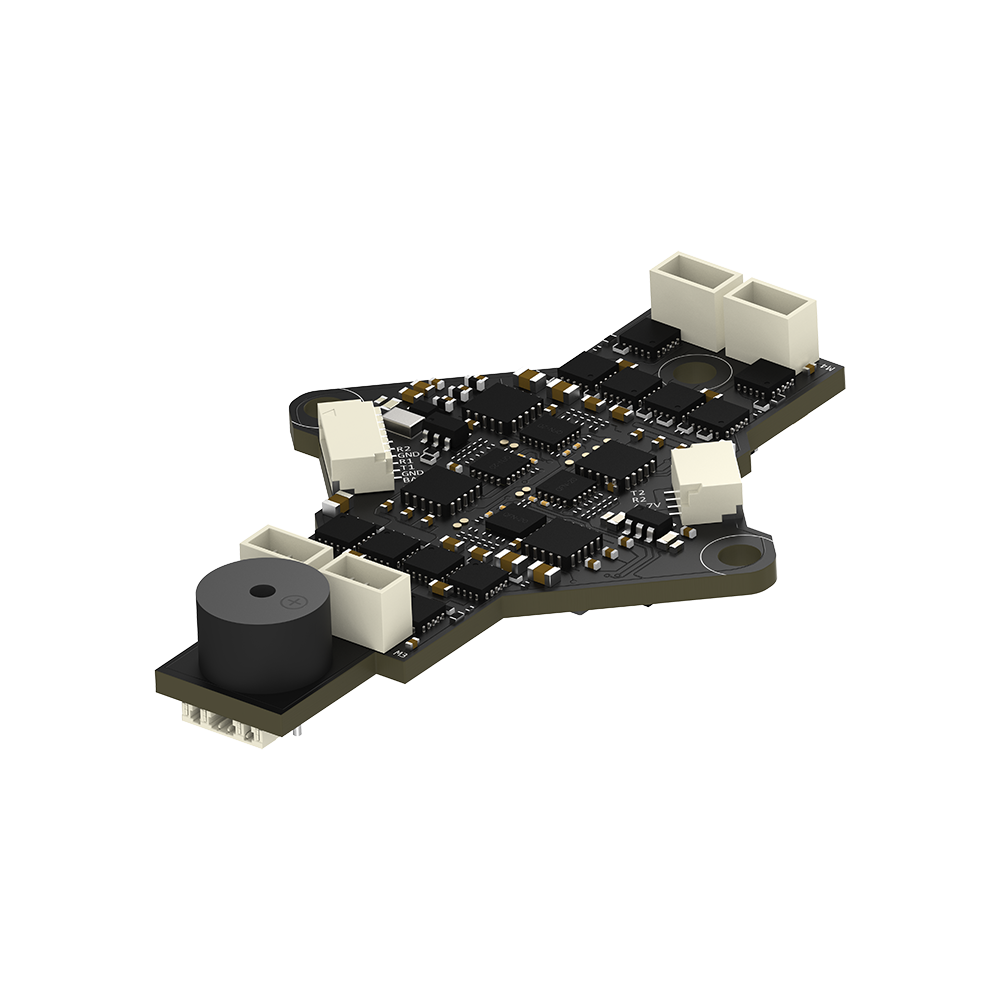

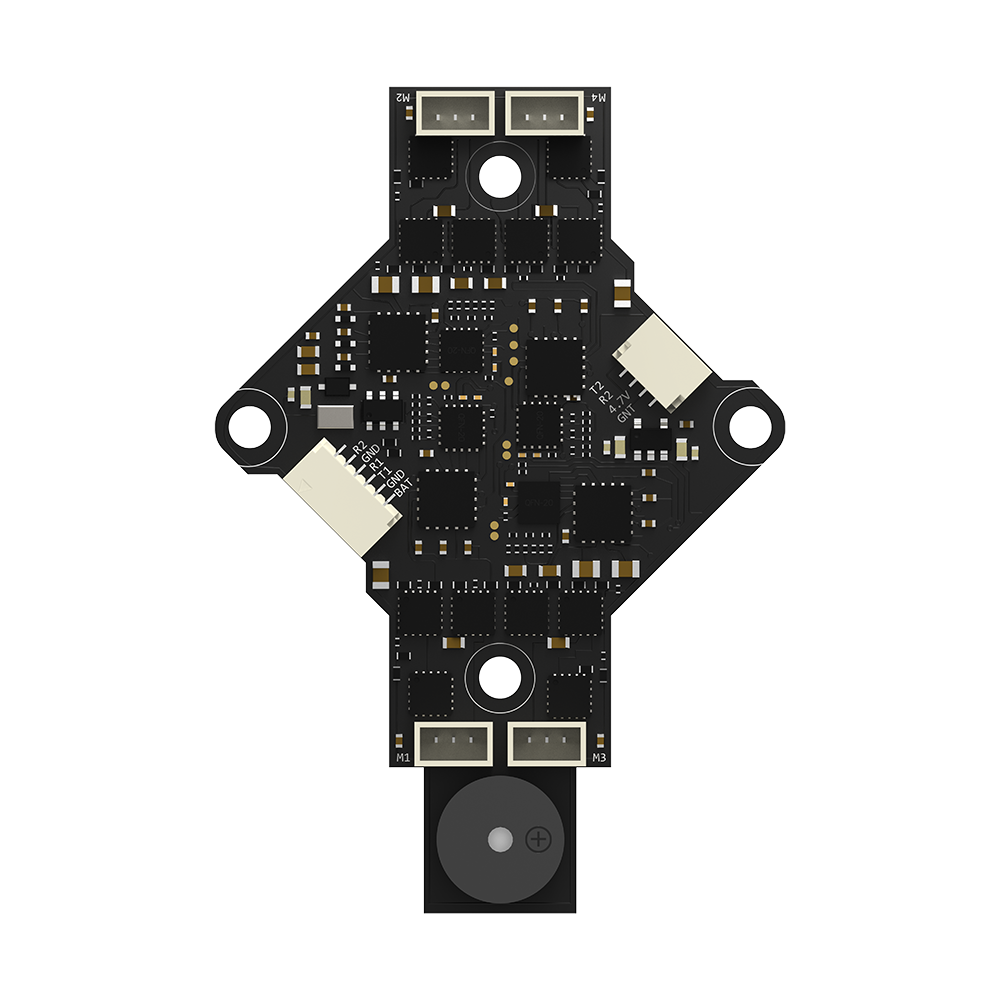

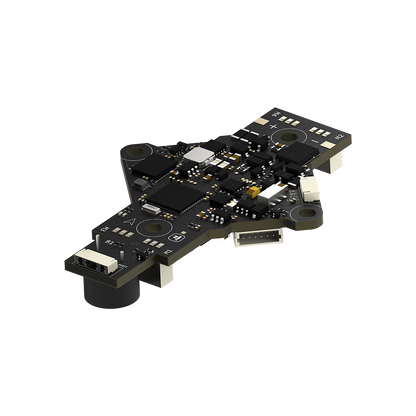

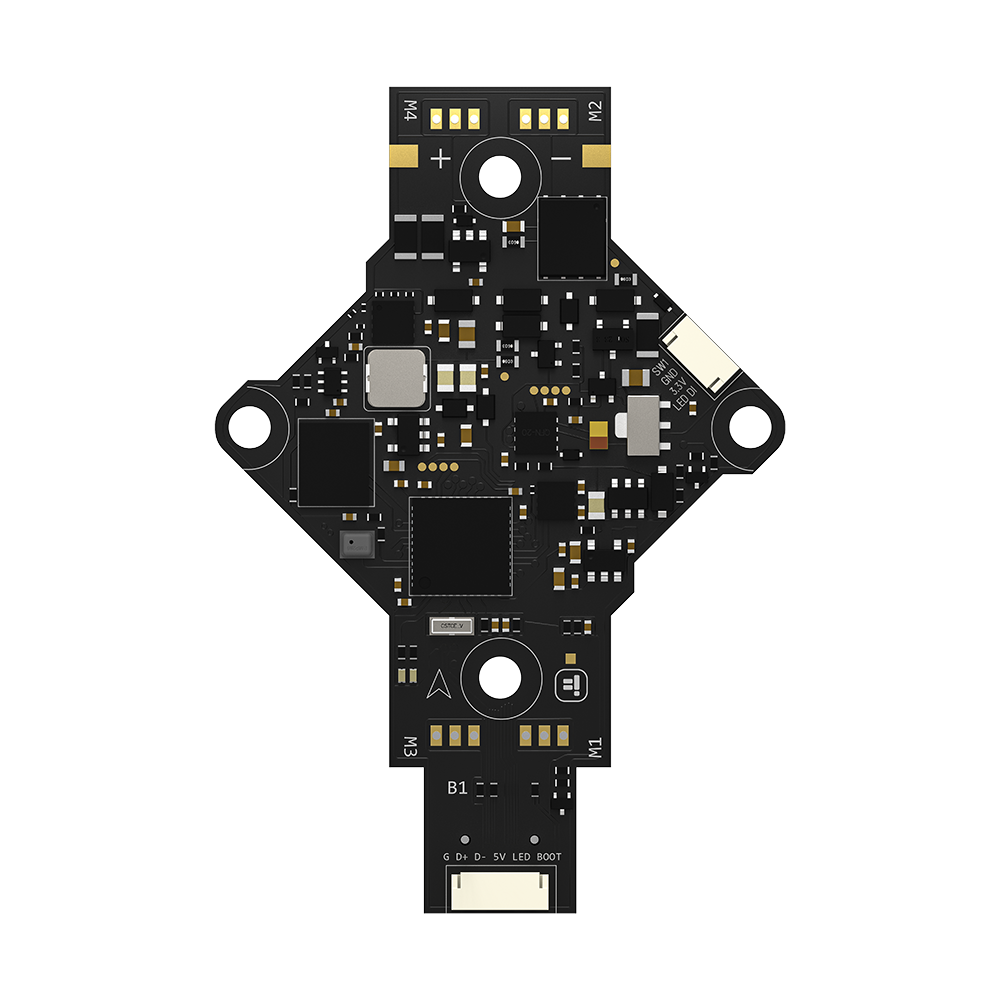

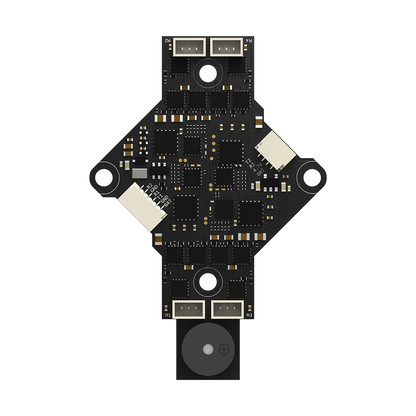

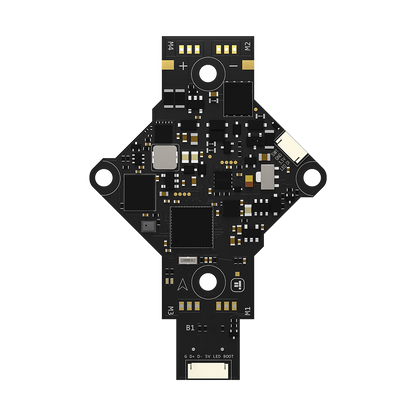

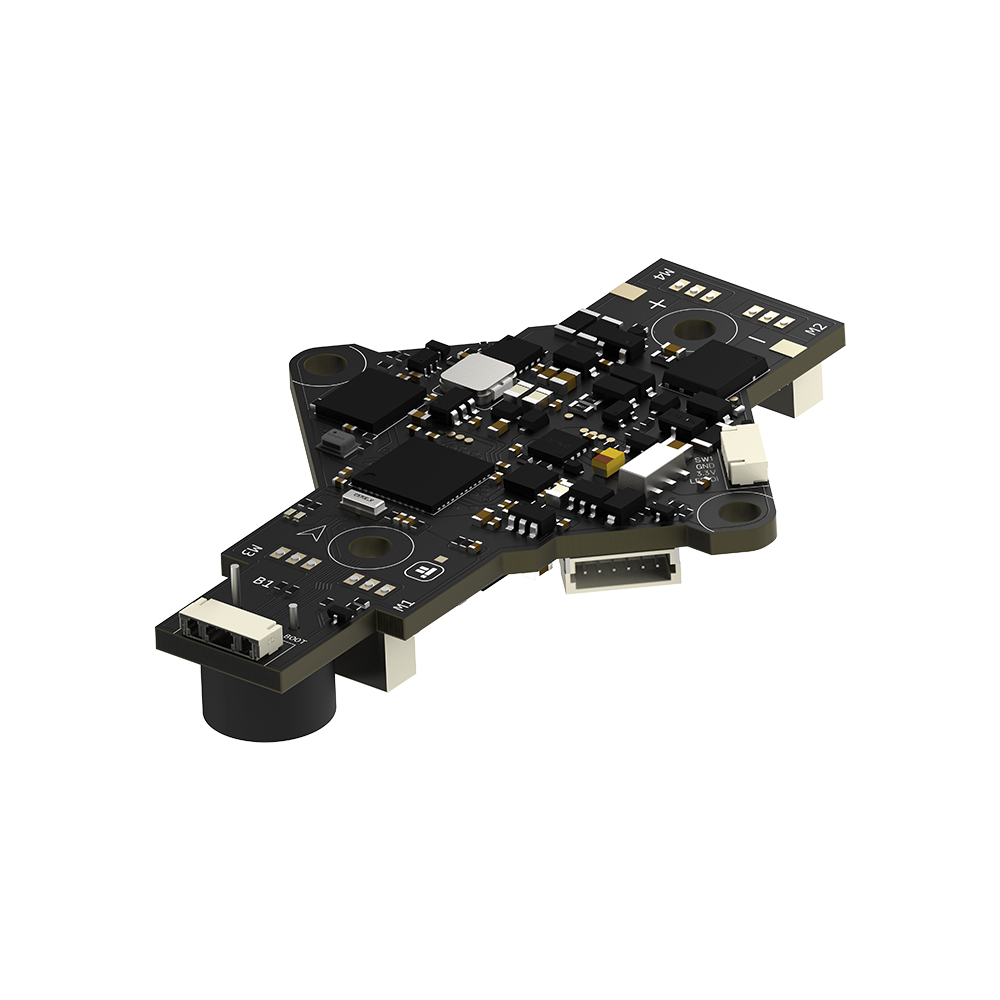

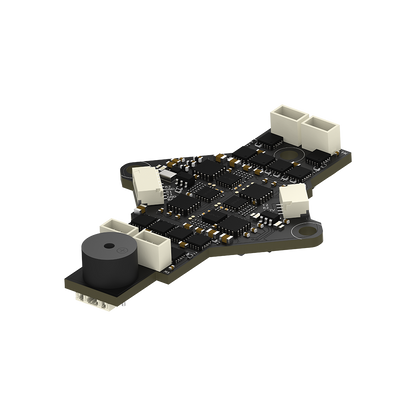

Defender 16/20 F411 AIO The new generation F411 AIO is designed specifically for the Defender 16/20. This all-in-one FC is future proof and offers plenty of room for future flight firmware development. It is lightweight and has a compact design. Highlights include DJI O3 and Caddx Vista/Polar pass-through connector, HD VTX switch function, receiver protocol switching function and built-in buzzer. FC Specifications: MCU: STM32F411 Gyroscope: ICM42688 Blackbox: 16 MB integrated flash BEC output: 5V 2A WS2812 LED strip: Yes Buzzer: Yes Barometer: No Connector: SH1.0 to Type C adapter OSD: N/A (HD VTX version) FC Firmware: IFLIGHT_Defender_F411 Mounting pattern: 25.5*25.5mm φ3mm Dimensions: 61*41mm Input voltage: 2-3S, support LIHV battery ESC Specifications: ESC MCU: BB21 Driver: FD6288 Input voltage: 2-3S Support LIHV battery Output current: 20A ESC firmware: Q-H-50 - Bluejay, 0.16 Current sensor: 200 ratio (1/10 mV/A) BEC: NO ESC telemetry: Not supported Two-way DShot: Yes Supports DShot DShot150/300/600/MultiShot/ OneShot etc. The package includes: 1 x Defender 16/20 F411 AIO 1 x set of cables
