    Code: B012717

    AIO FC iFlight BLITZ F411 1S 5A Whoop

    AIO FC iFlight BLITZ F411 1S 5A Whoop

    Brand: iFlight

    €62,00
    €62,00 €62,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

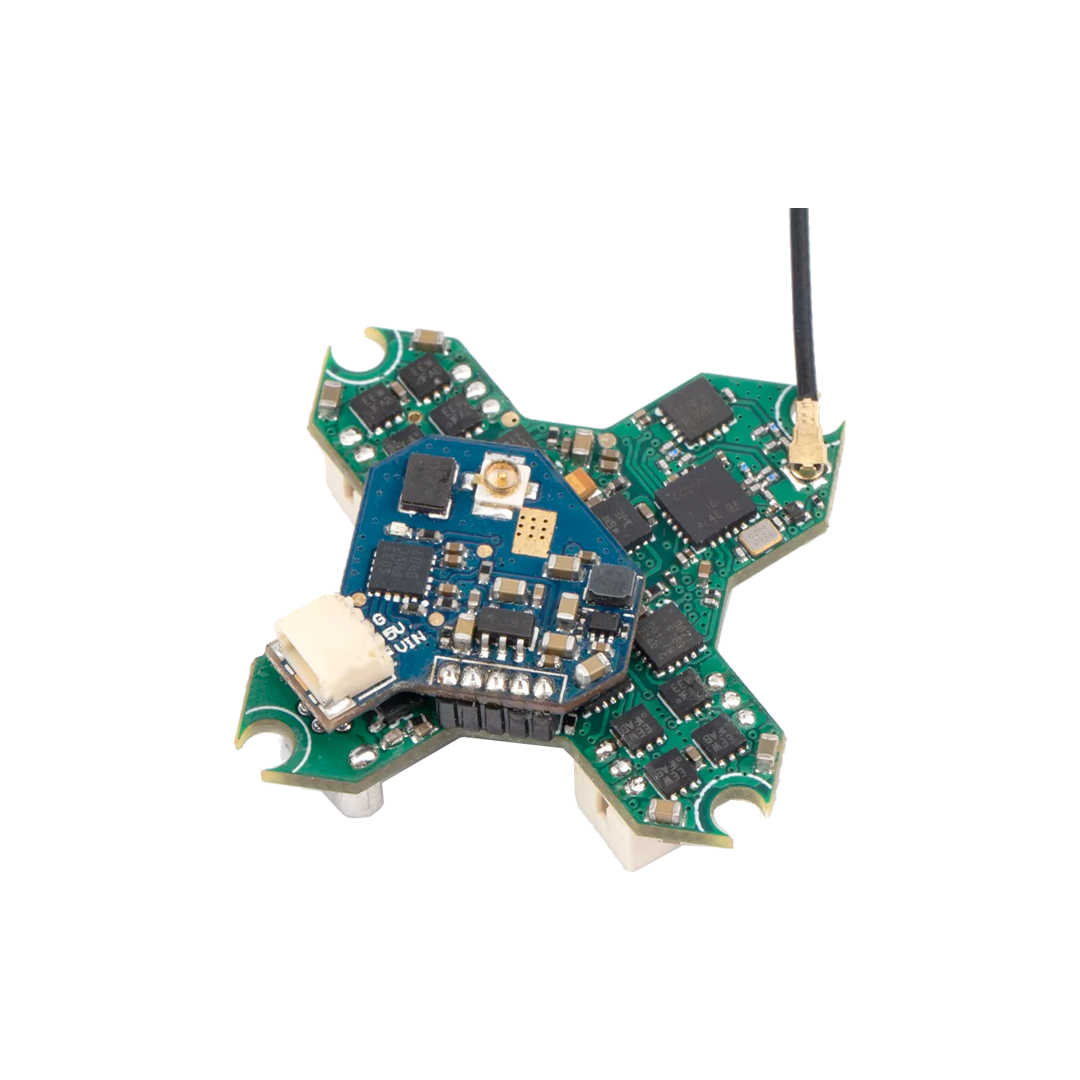

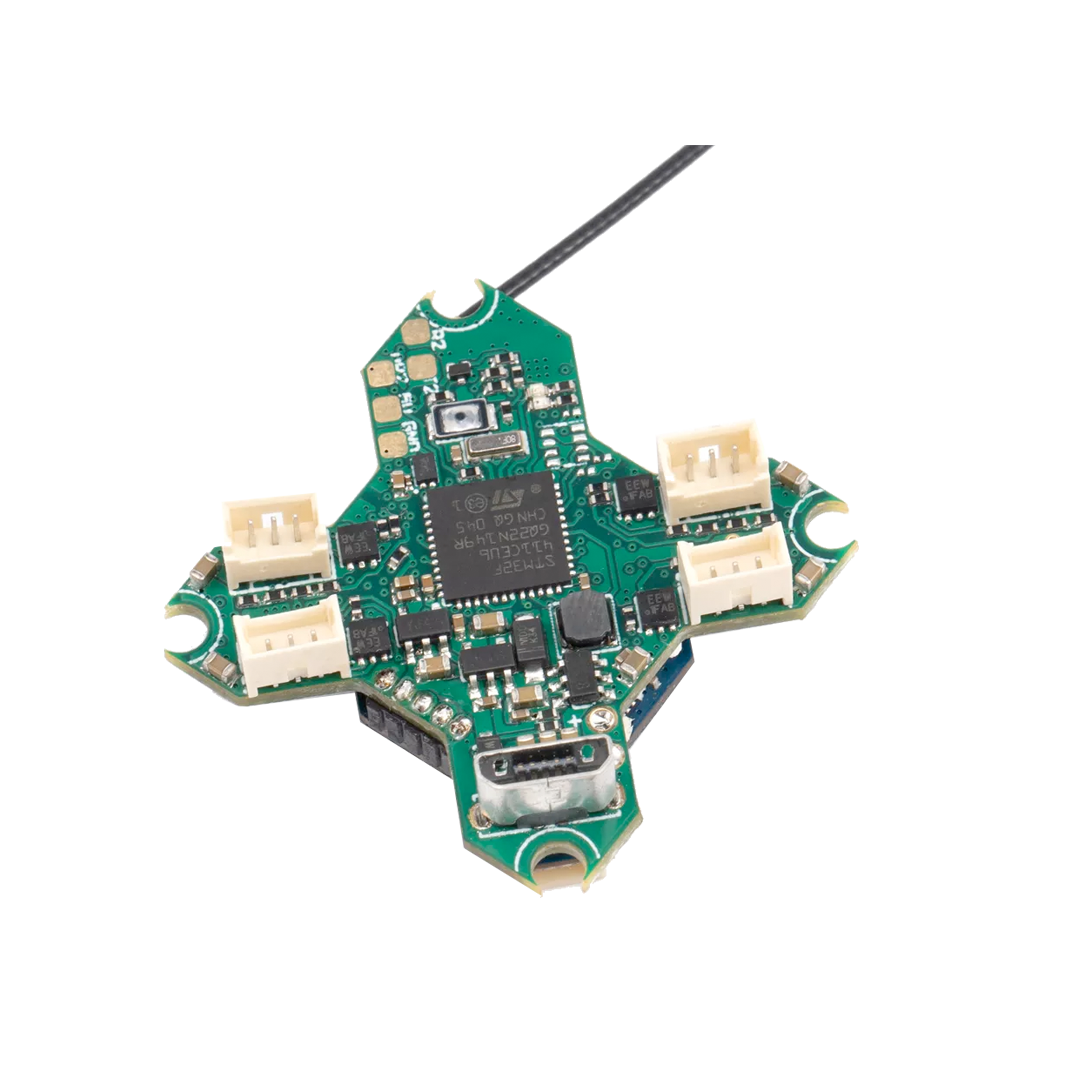

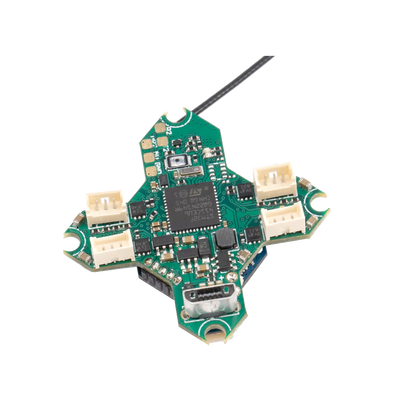

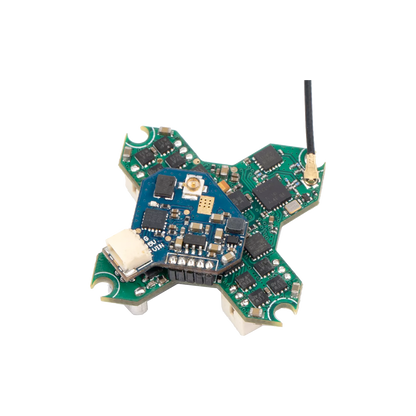

    BLITZ F411 1S 5A Whoop AIO

FC Specifications:

Weight: 4.8g (with power cable, VTX and VTX antenna)
Mounting pattern: 25.5*25.5mm/φ3mm (half hole)
Supported protocols: CC2500, SPI, D8, S-FHSS
FC firmware: IFLIGHT_F4SX1280
BEC output: 5V 500mA
Connector: Micro-USB
MCU: STM32F411
INA pad: n uart2
Barometer: NO
Size: 29*29 mm
Gyroscope: BMI270
Blackbox: NO
NOTE: F.PORT protocol RX input support, telemetry is not supported

ESC Specifications:

ESC: 5A
Signal support: Dshot, Oneshot, Multishot
Current: 5A continuous and 6A peak
ESC Firmware: O-H-30 BLS 16.8 (BlheliS) / Bluejay Q-H-50 (Bluejay)
Current sensor: yes
ESC telemetry: NO
Current scale: 400
Input: 1S

VTX Specifications:

Protocol: Smart audio
Power: PIT/25/50mW
Connector: UFL/IPEX
Input voltage: 5V
Channels: 48CH

The package includes:
1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G ELRS with SMD Antenna
4 x M2 rubber balls
1x Whip antenna
