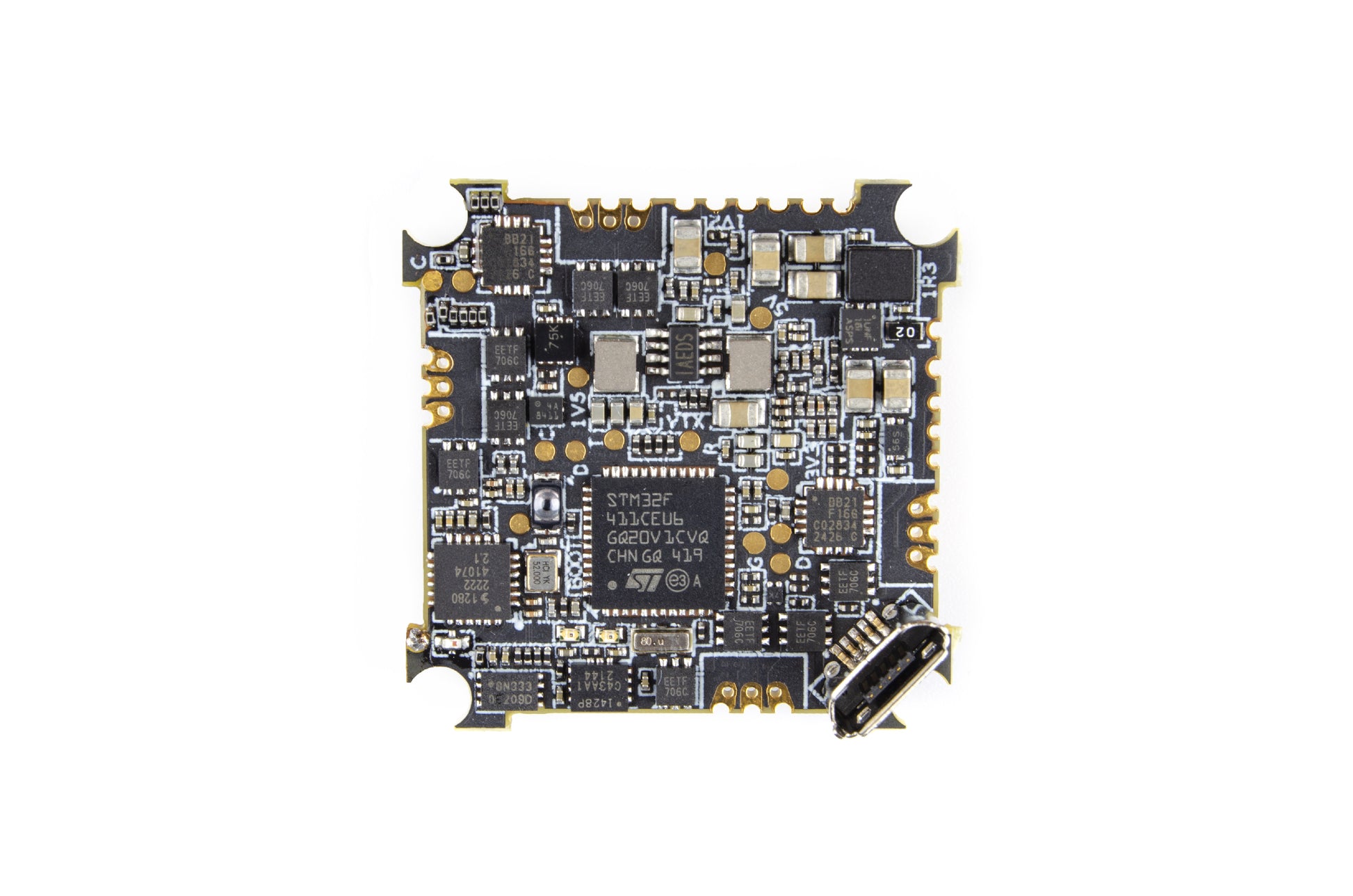

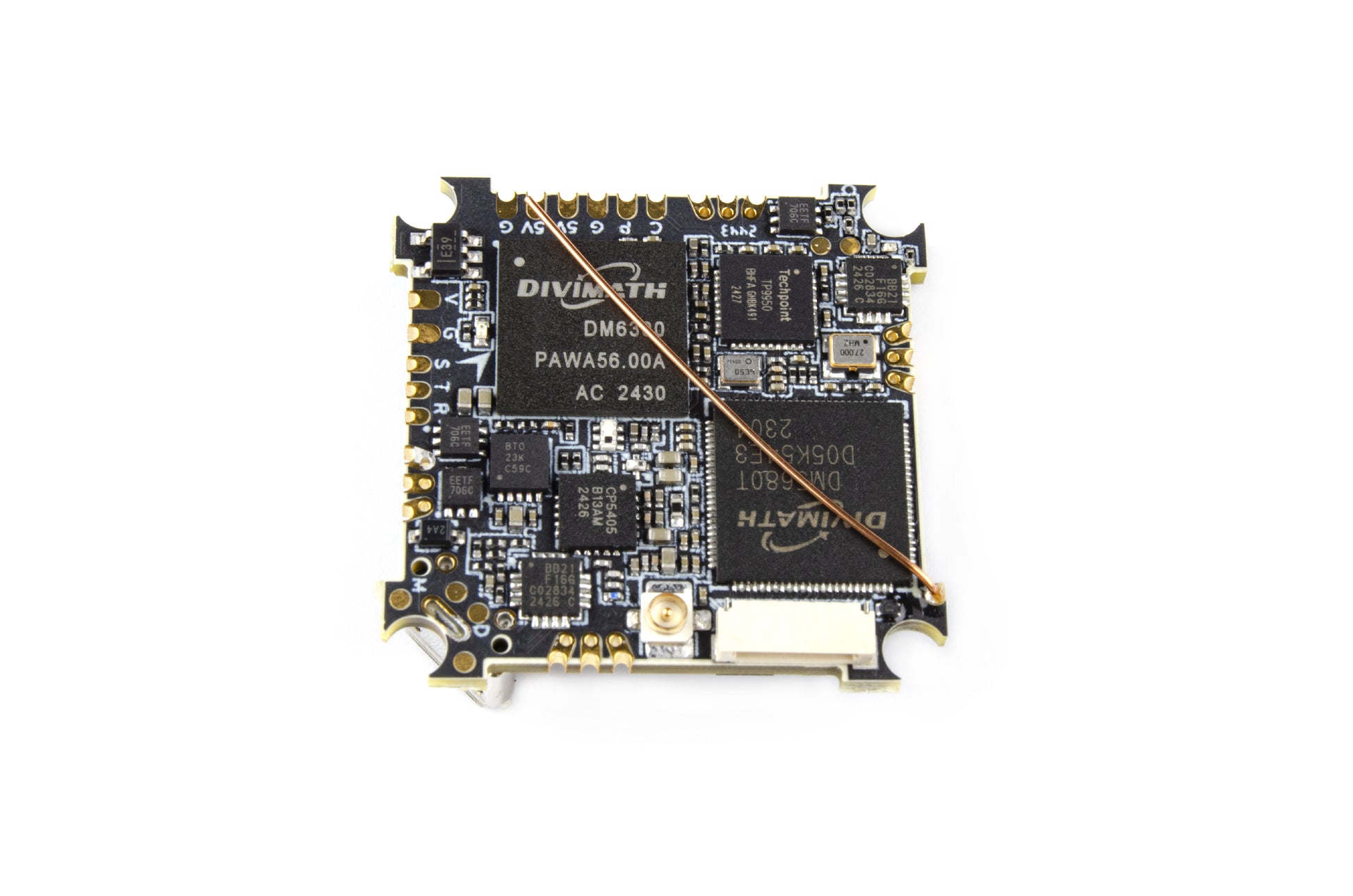

HDZero AIO5 All-in-One Board
HDZero AIO5 is a breakthrough innovation in FPV technology and represents the world's first digital video AIO . It allows 65mm bind-and-fly drones to weigh under 19.4g while providing crystal clear HD quality digital video. This all-in-one board integrates a number of high-performance components, including F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT-ready 4-in-1 ESC and 5V/1A BEC.
Key Features
- Improved Durability and Simplicity: Construction on one strong PCB board instead of the traditional stacked design increases durability and eases installation.
- Improved voltage interface: Minimum voltage reduced to 2.5V, which guarantees uninterrupted video transmission even when the battery voltage drops.
- Peak performance: Integrated components are optimized for ultra-light drones on 1S battery, setting a new standard for small drones.
- Worldwide Availability: Developed in collaboration with Happymodel and HDZero, the AIO5 is available worldwide through leading FPV retailers and official online stores.
Specifications
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- ESC: Integrated 5A BLHeli_S 4-in-1 ESC (5A continuous, 6A peak for 3 seconds)
- Factory ESC firmware: O_H_5_48_V0.19.2.HEX
- Supported protocols: DShot600 ready
-
VTX: Integrated HDZero 5.8GHz transmitter
- RF output: 25mW/200mW
- Supported channels: R1-R8, F2/F4, L1-L8

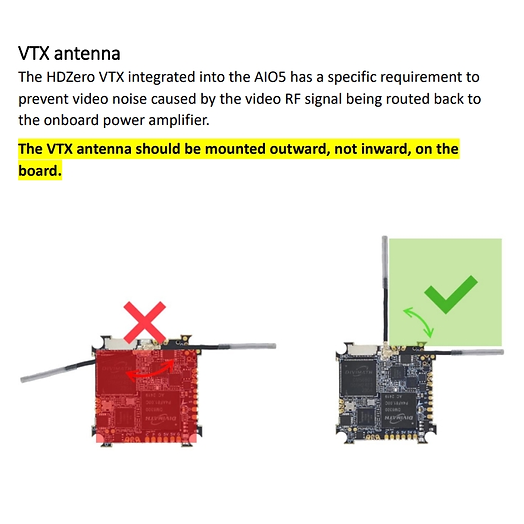

- Connector: UFL with ultra-light linear antenna (included in the package)
-
Receiver: Integrated SPI ExpressLRS 2.4GHz
- Packet rate options: 25Hz/50Hz/150Hz/250Hz/500Hz
- Telemetry power: <12dBm

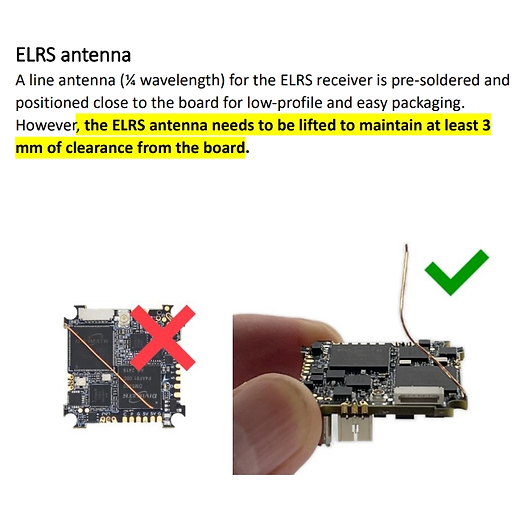

- Overset enamelled wire antenna
- Power supply: Battery 1S (2.5V - 4.35V)
- BEC: Integrated 5V 1A
- Firmware target flight controller: CRAZYBEEF4SX1280
- Board size: 28.5 x 28.5mm, mounting holes 25.5 x 25.5mm
- Weight: 5.7g (without motor connectors), 6.3g (with motor connectors)
- Compatibility: Compatible with popular whoop frames

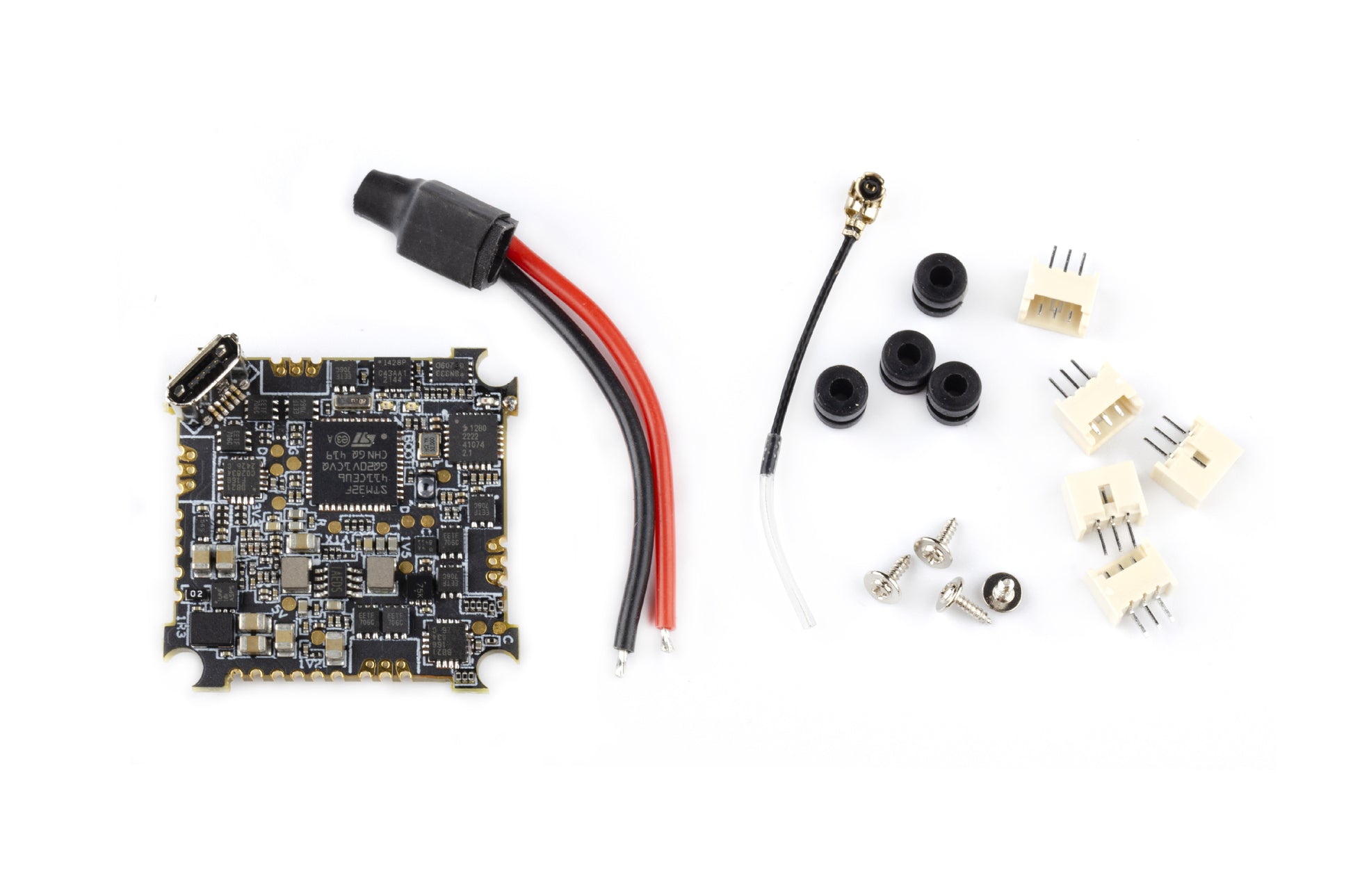

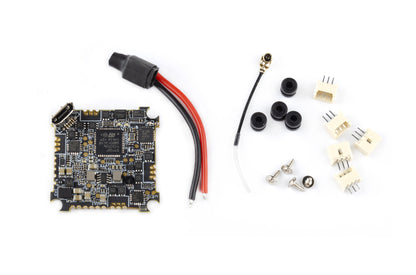

Package contents
- 1x HDZero AIO5 board
- 1x Power cable (with angled A30 connector)
- 4x Screws
- 4x Rubber grommets
- 1x Ultra light linear VTX antenna
