    AIO FC GEPRC TAKER F411 8Bit 12A Without ELRS

    AIO FC GEPRC TAKER F411 8Bit 12A Without ELRS

    Brand: GEPRC

    €75,99
    €75,99 €75,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

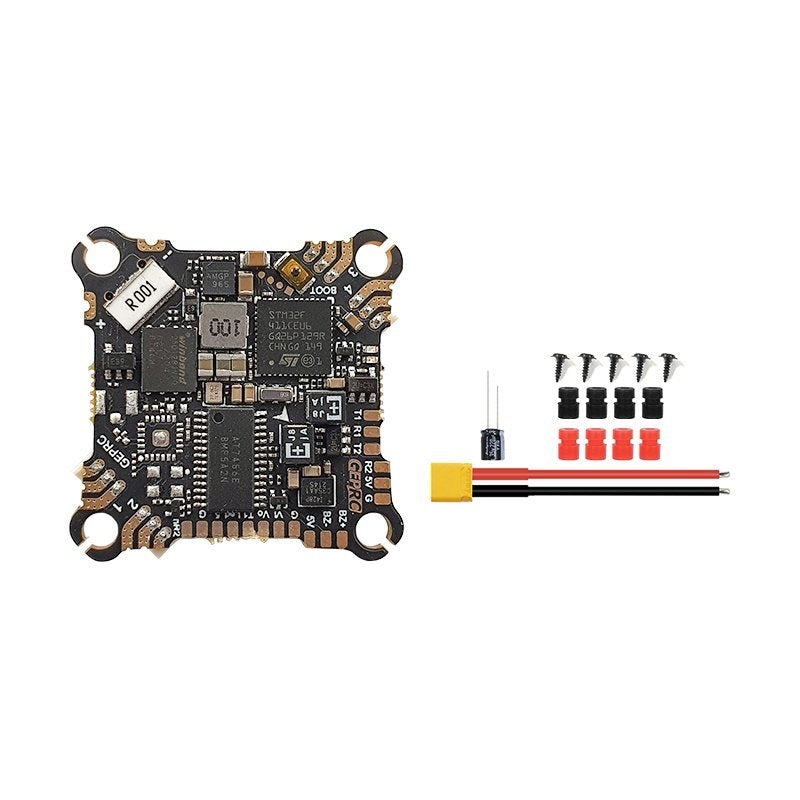

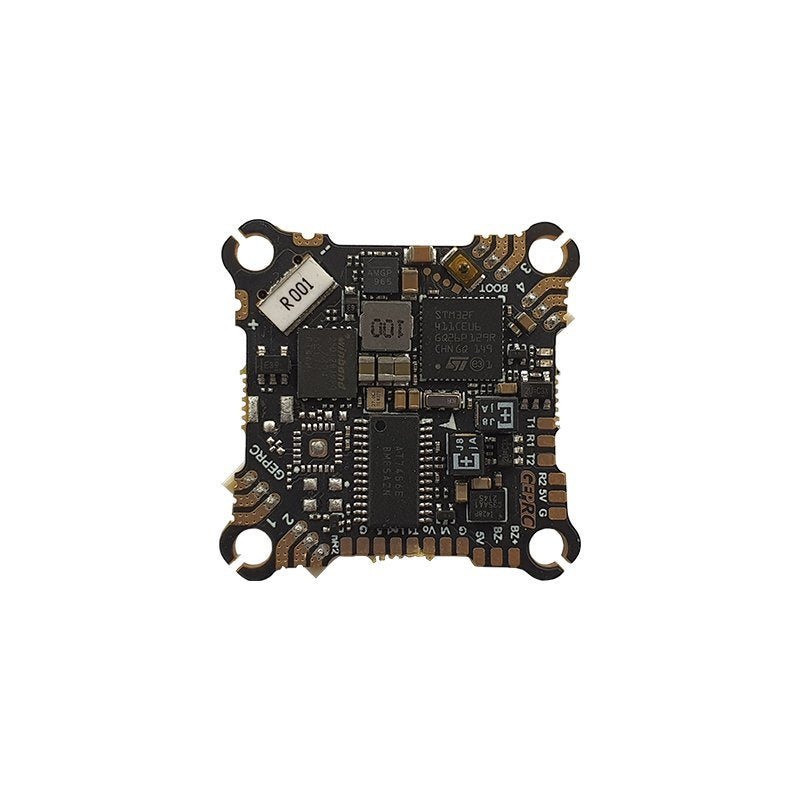

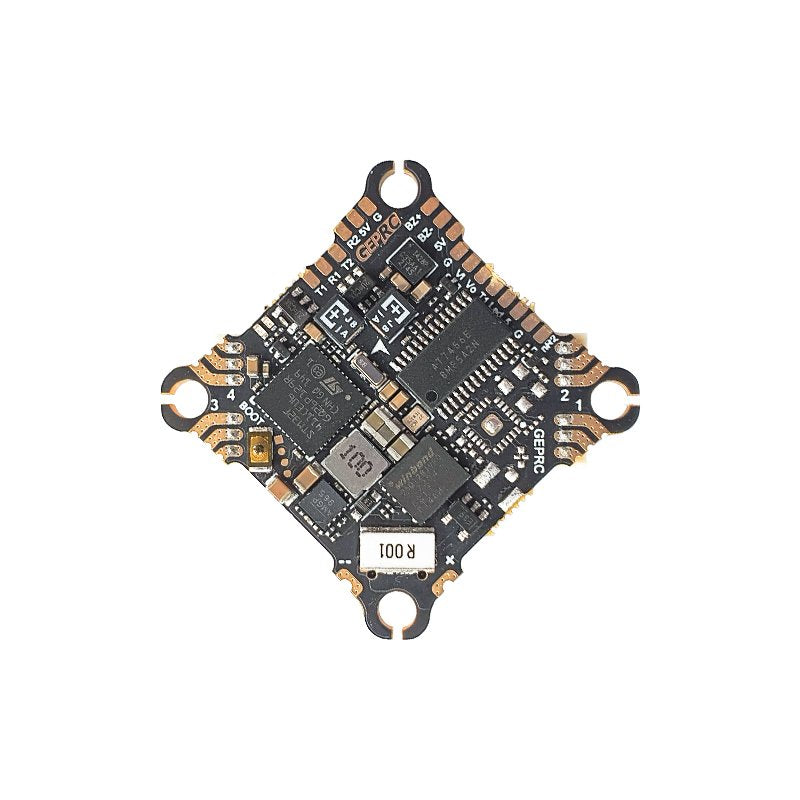

    TAKER F411 8Bit 12A AIO No ELRS

The TAKER F411 8Bit 12A AIO is designed to provide an efficient and lightweight solution for mini FPV drones, making it suitable for a variety of flying styles, including racing and freestyle. Includes ICM-42688-P gyro for precise and responsive flying and supports 2-4S batteries. The AIO board also comes with a 16MB integrated black box for setting parameters.

Specifications:
Model: TAKER F411 8Bit 12A AIO (without ELRS receiver)
MCU: STM32F411
IMU: ICM42688P
Firmware target: GEPRC_F411_SX1280
OSD: BetaFlight OSD with AT7456E chip
UART ports: R1 T1R2 T2
Reverse port: NR2
Buzzer: YES
LED: YES
USB port: micro USB
ESC MCU: BB21F16G
Black Box: 16Mb built-in flash memory
Continuous current: 12A
Peak current: 13A
Entry: 2-4S
ESC protocol: Dshot300, Oneshot, Multishot
Current meter: 210
ESC Firmware: G-H-30 - Bluejay, 0.16, 48kHz
Plate size: 31.2 x 31.2 mm
Mounting holes: 25.5mm x 25.5mm hole, M2 hole
Weight: 7g
