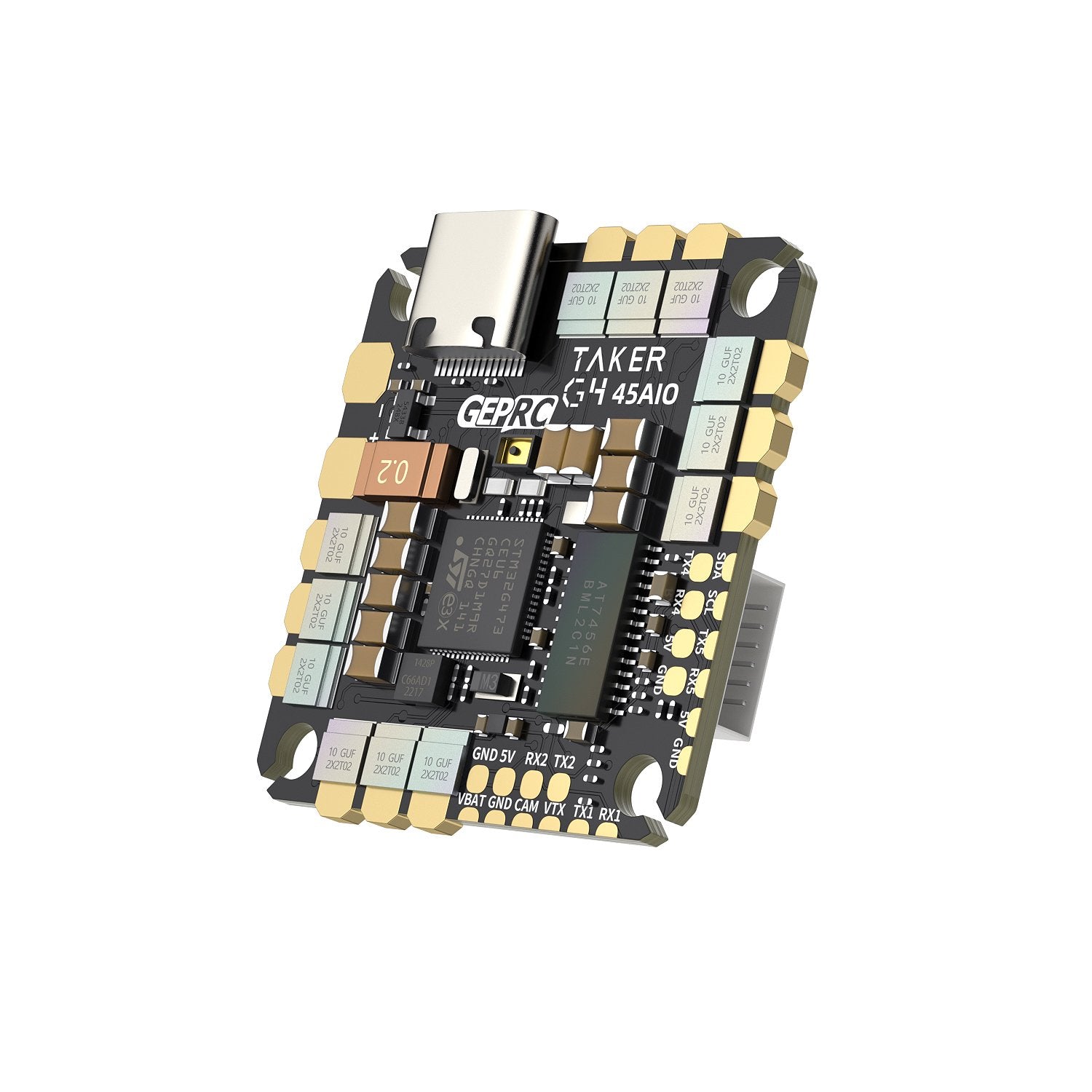

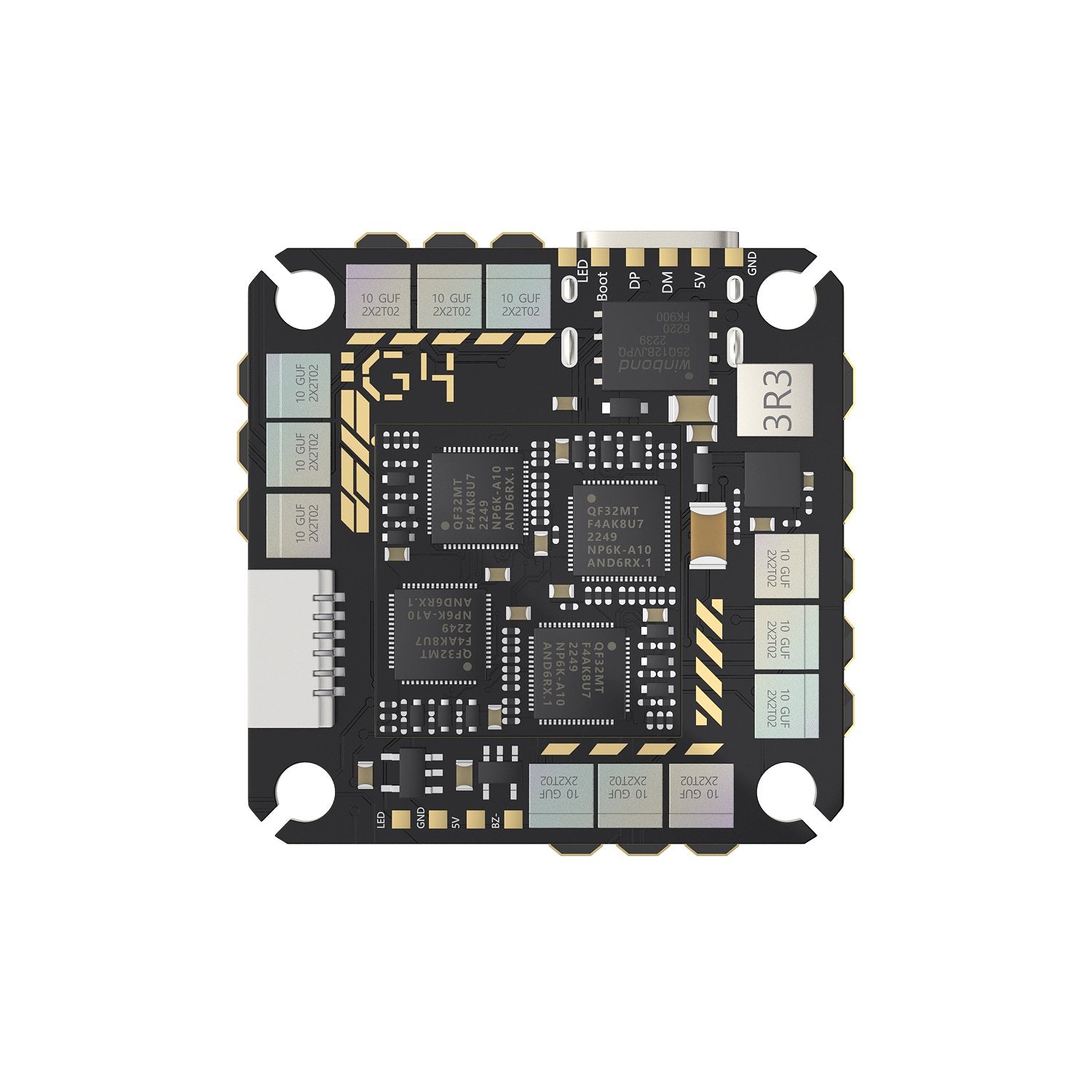

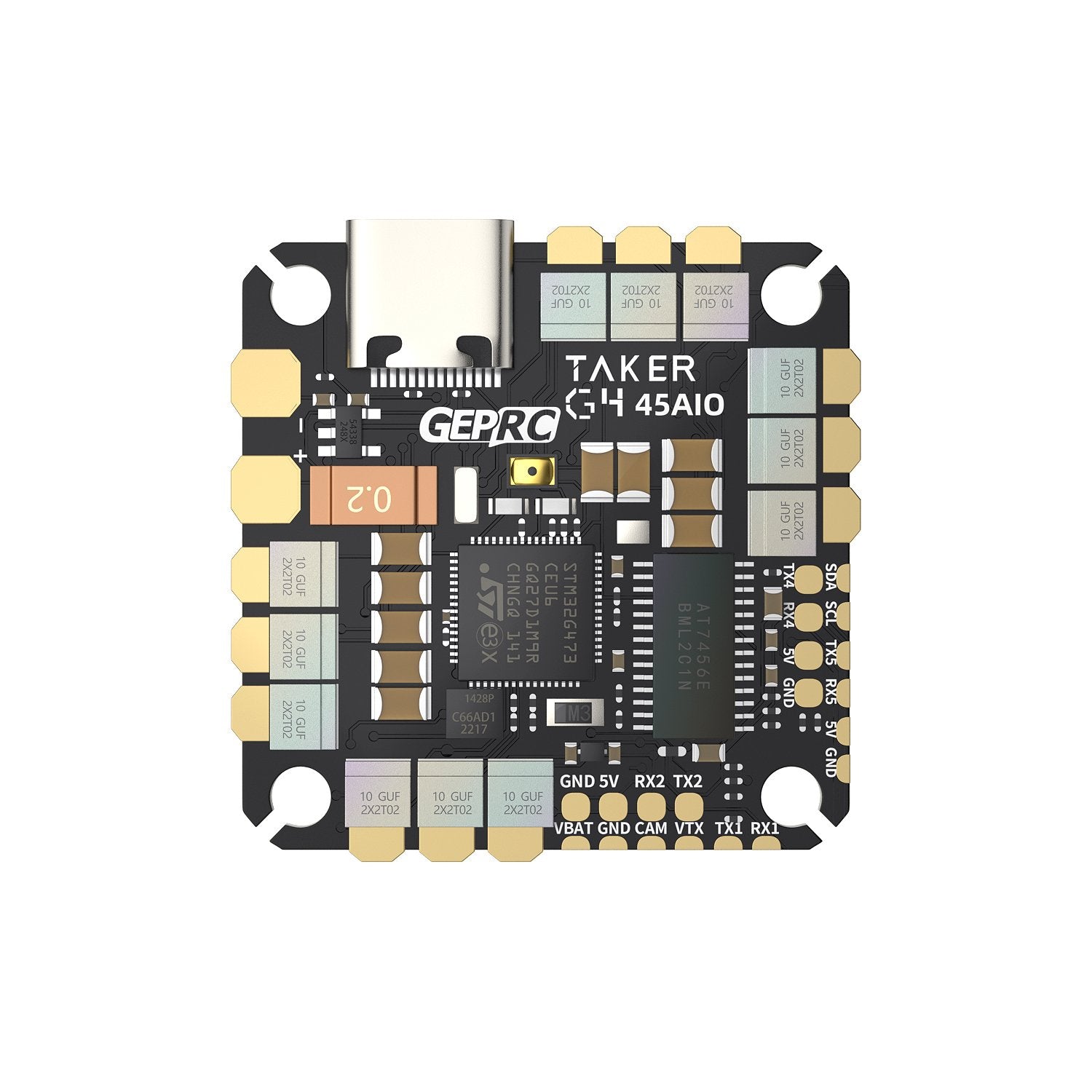

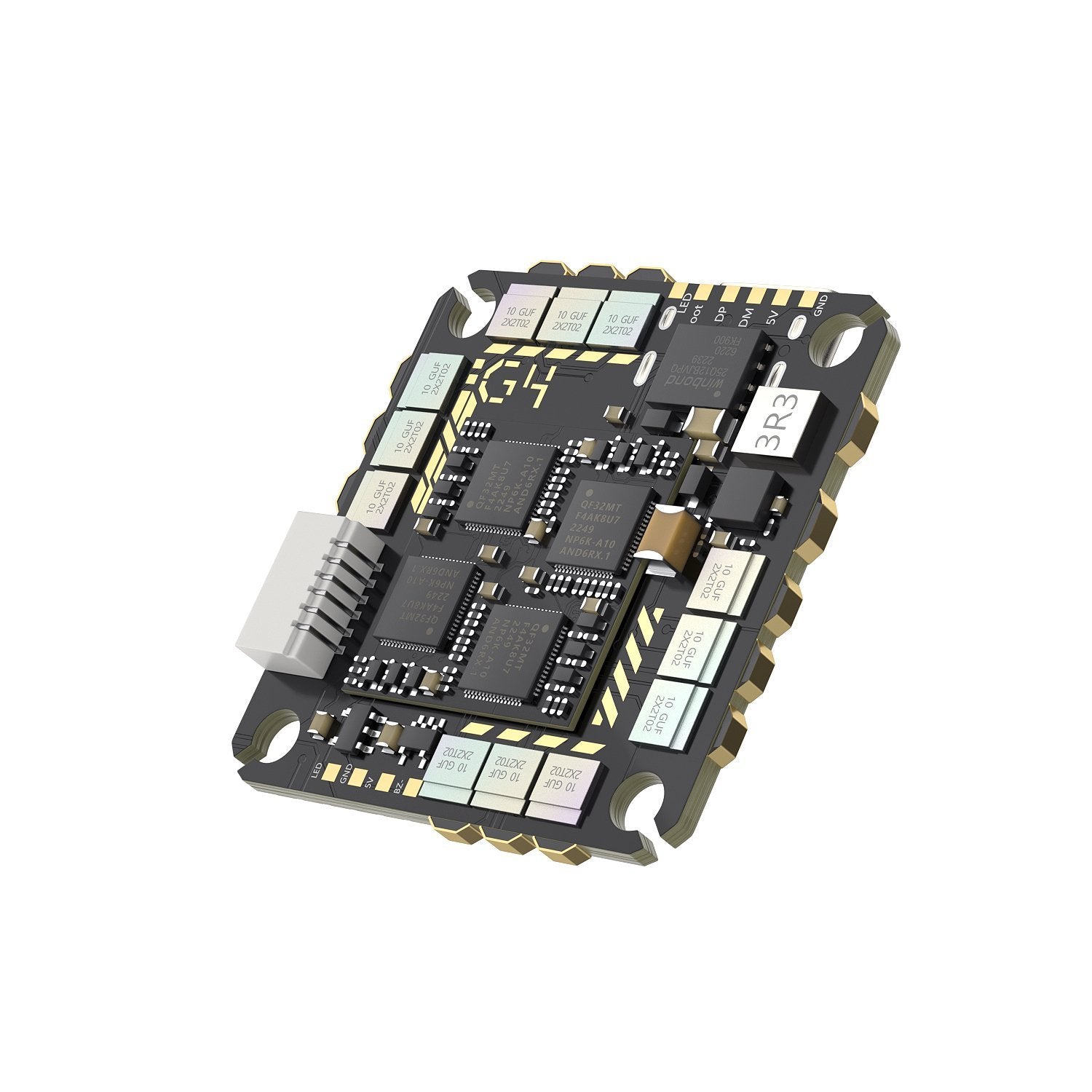

AIO FC GEPRC GEP-TAKER G4 45A The TAKER G4 45A AIO is a new AIO flight control developed by the GEPRC team. FC uses the G473 master control to achieve better computing performance. With its powerful overcurrent capability, the selectivity of the electrical setting is diversified. The entire board is covered with a nano waterproof coating that gives the AIO an aura look and also makes the AIO waterproof. Adopts QF32MT chip, integrated ESU and MCU directly drive FET, which is light and space saving. Function: - Weighs only 9 grams. - The G473 controller has a working frequency of 170 MHz and excellent computing capabilities. - Optimized USB Type-c has better versatility. - Integrated ESU and MCU directly drive the FET, which is lightweight and space-saving. Specifications: Model Name: TAKER G4 45A AIO MCU: STM32G473CEU6 IMU: ICM 42688-P Target firmware: TAKERG4AIO OSD: Betaflight OSD with AT7456Ev Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5 Buzzer: YES LED: YES USB: USB type c BEC output: 5V 3A ESC MCU: QF32MT Continuous current: 45A Explosive current: 50A (5″) Input voltage: 2-6S (LIPO battery) Supports: Dshot600,Oneshot,Multishot Current meter: YES target: F4A AIO Plate size: 33.8 x 34.1 mm Mounting hole: 25.5 x 25.5 mm Weight: 9g The package includes: 1 x GEP-TAKER G4 45A AIO 1 x set of cables
