    Code: GP104775

    AIO FC GEPRC GEP-F722-35A

    AIO FC GEPRC GEP-F722-35A

    Brand: GEPRC

    €79,63
    €79,63 €79,63
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

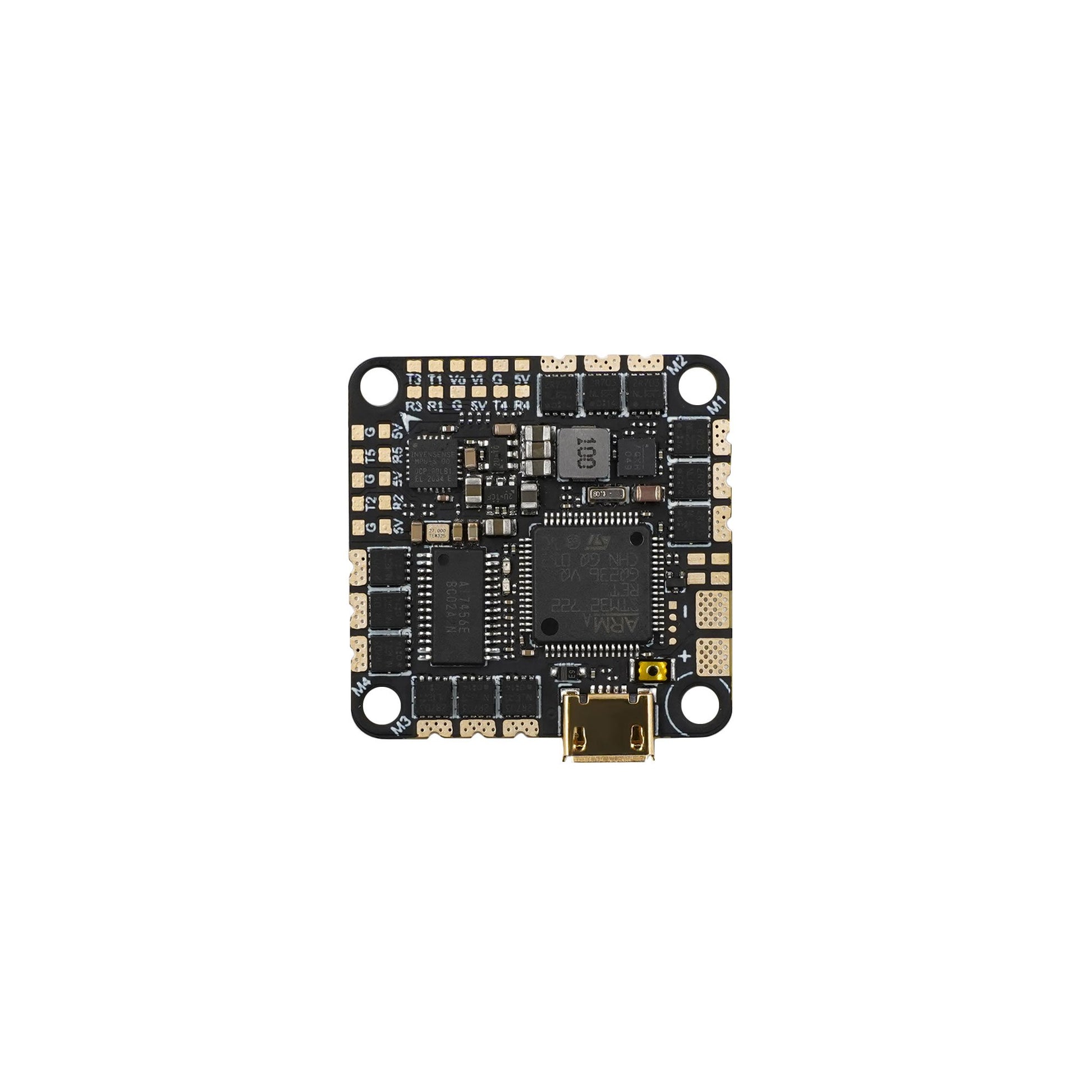

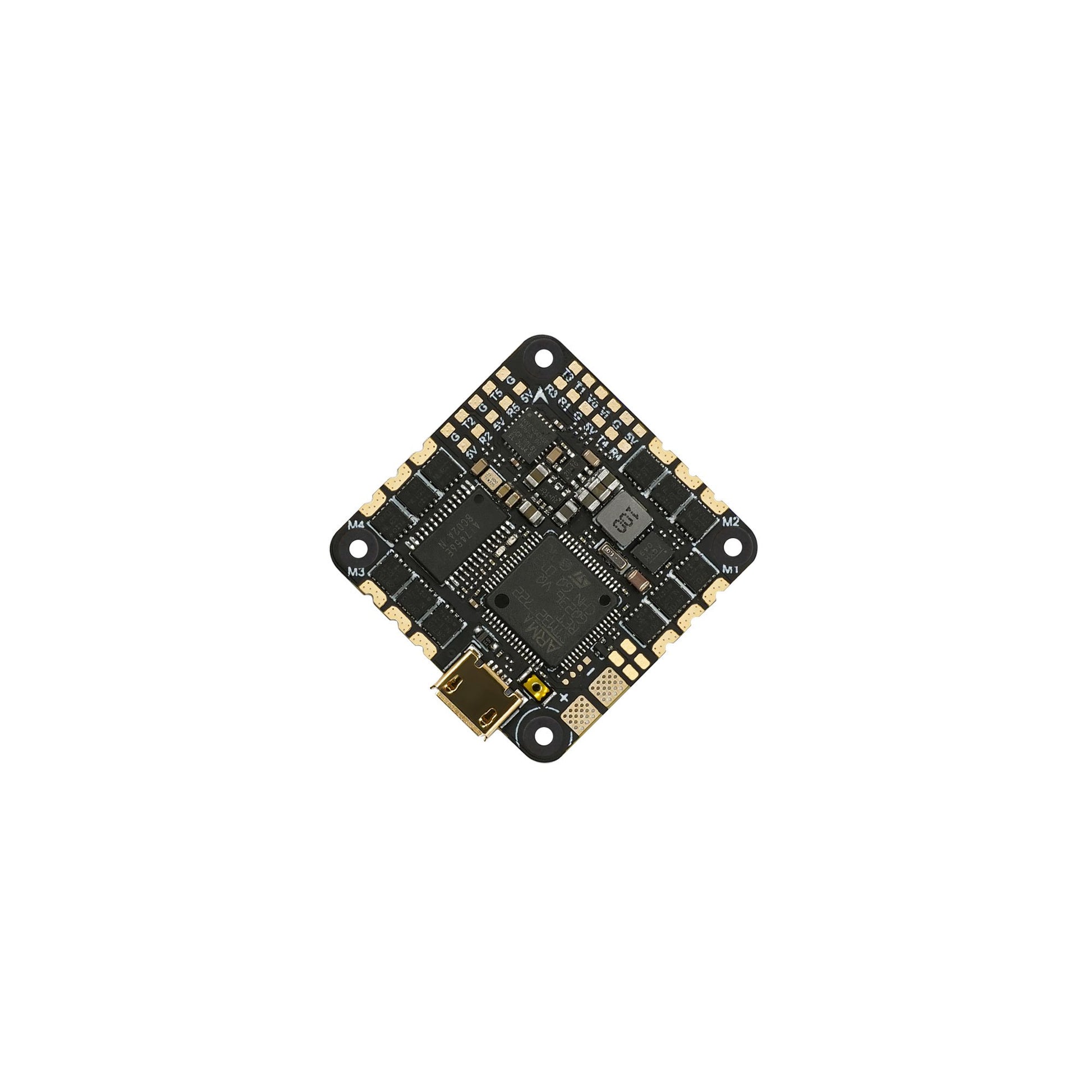

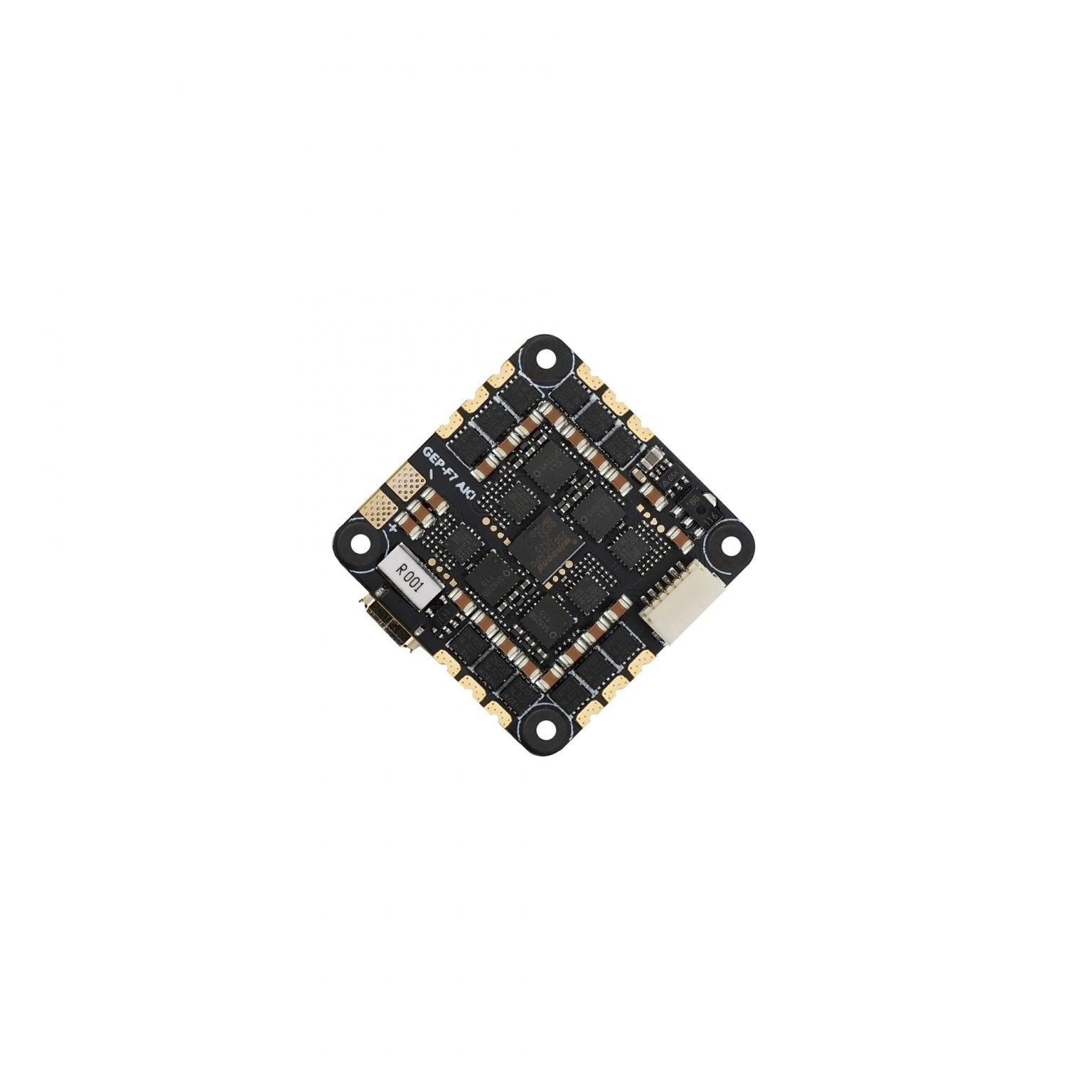

    GEP-F722-35A AIO

The GEP-F7-35A flight controller and ESC combo is designed to offer powerful performance and versatile features for drone enthusiasts. It provides a convenient and lightweight solution suitable for a wide range of drone frames.

Function:
1. MCU: STM32F722 with strong performance and higher computing speed.
2. Provides 5 full UART ports to connect external devices.

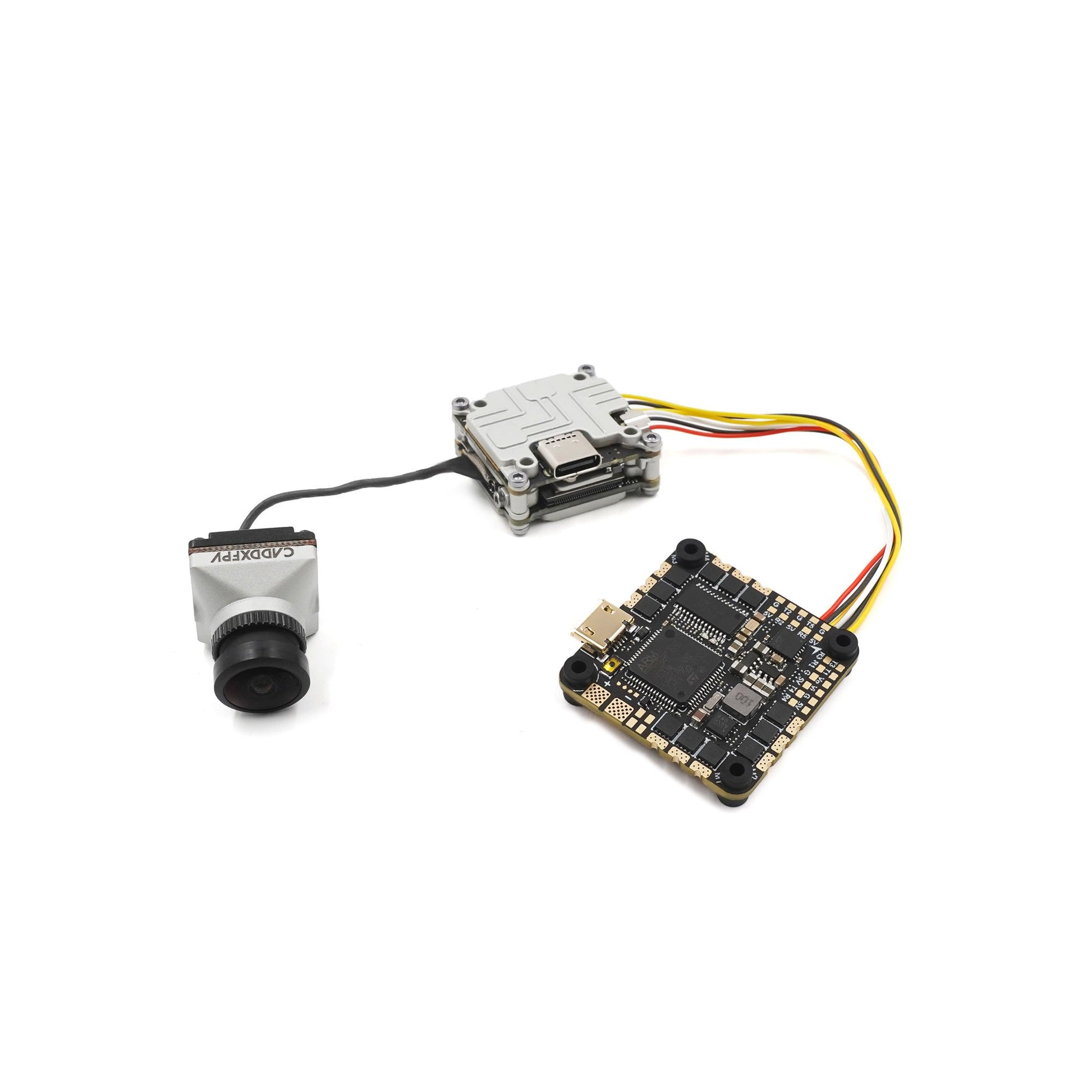

3. Includes a 6-pin connector for the DJI AIR UNIT MODULE for plug-and-play compatibility.
4. BLheili_S 35A ESC can handle 35A continuous current (40A surge) and support 2-6S LiPo batteries.
5. It supports OSD parameters setting, buzzer, LED and other functions.

Specifications:

Model Name: GEP-F722-35A AIO
MCU: STM32F722
IMU: BMI270/42688 Gyroscope/Accelerometer (SPI)
Firmware Target: GEPRC_F722_AIO
OSD: Betaflight OSD with AT7456E
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Buzzer: YES
LED: YES
USB: Micro USB
BEC output: 5V @ 1A
Integrated LC filter
ESC MCU: 8BB21F16G
Continuous current: 35A
MAX current: 40A (10s)
Entry: 2-6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16 Mb
Target: G_H_30
Plate size: 32 x 32 mm
Mounting hole: 25.5 × 25.5 mm
Weight: 8.8g
