AIO FC Foxeer Reaper AIO V3
AIO FC Foxeer Reaper AIO V3
Brand: Foxeer
Regular price
€91,65
Regular price
€91,65
Sale price
€91,65
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

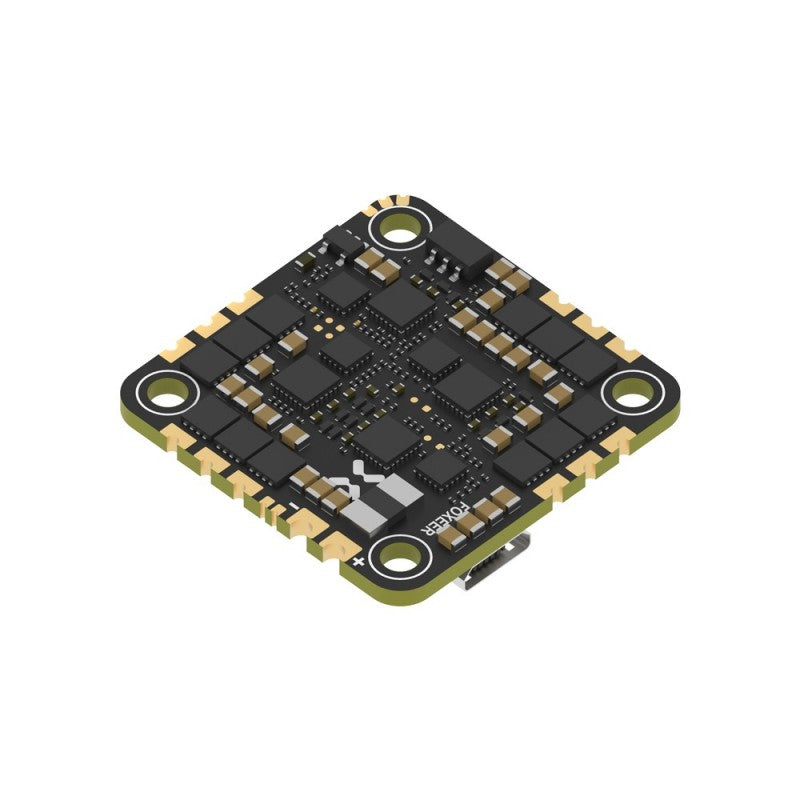

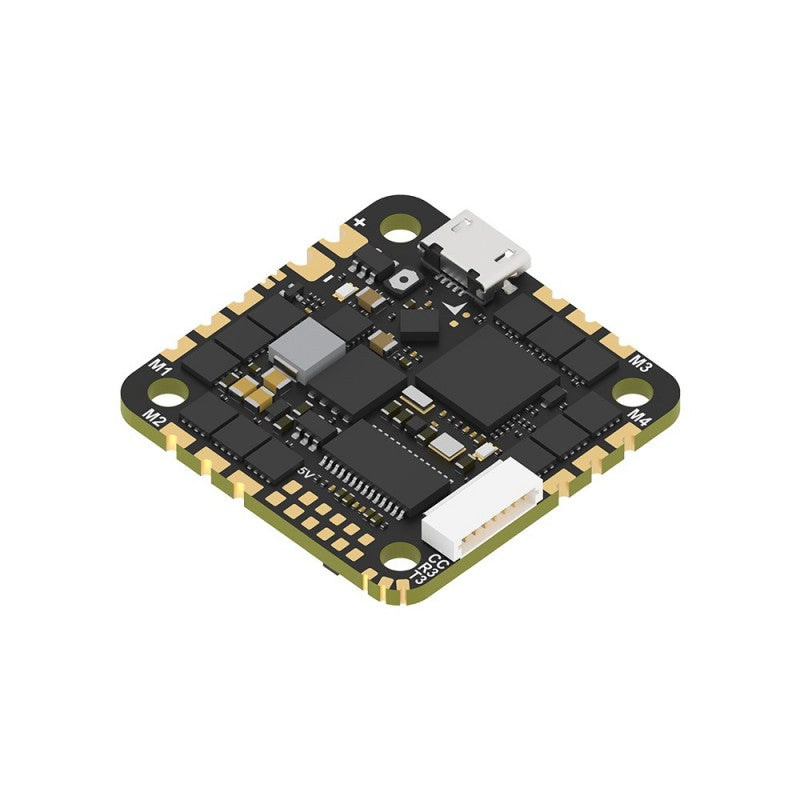

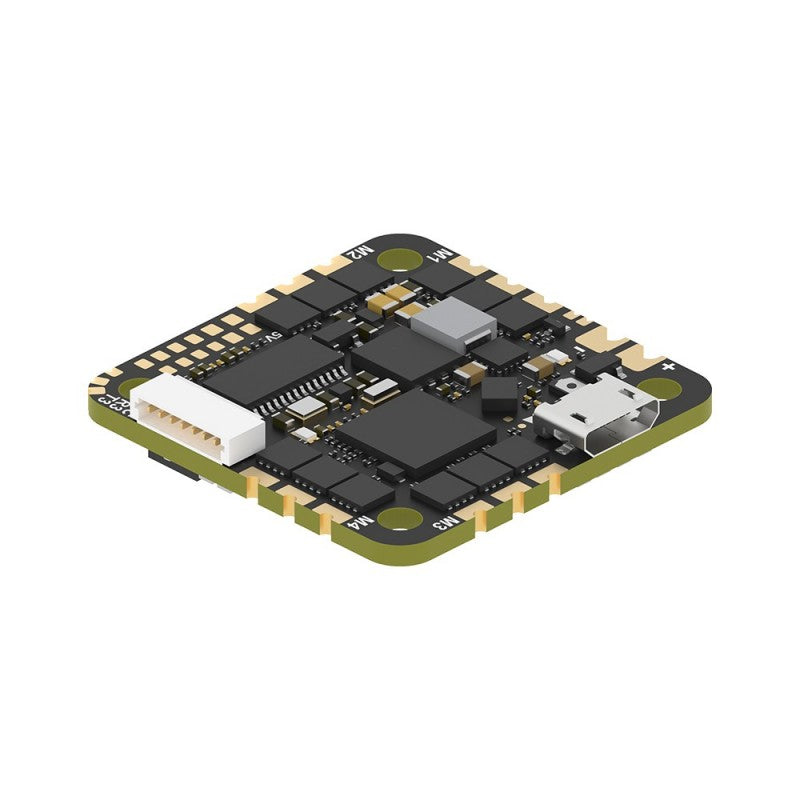

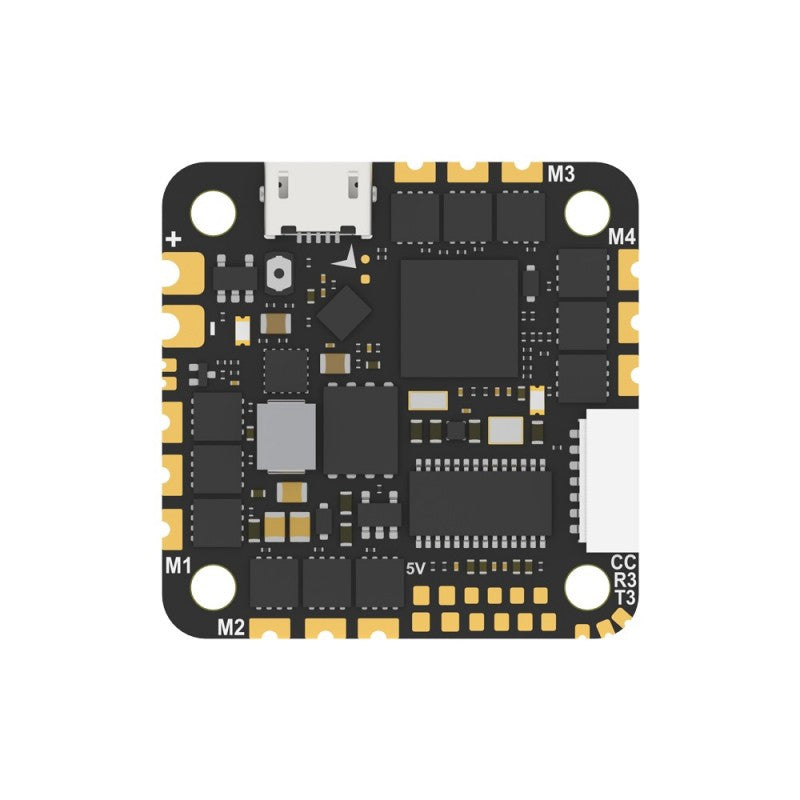

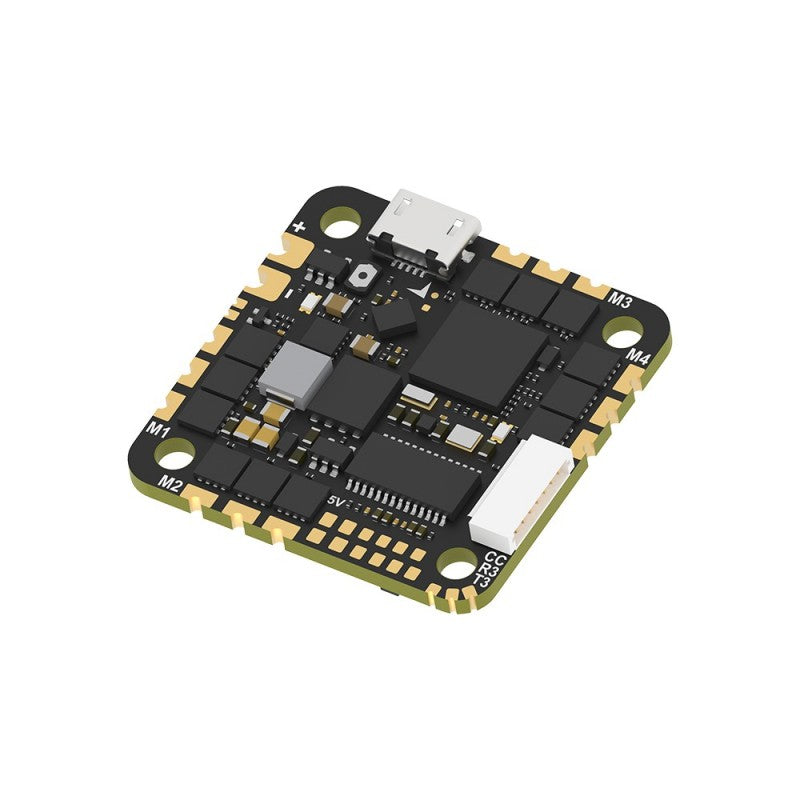

Foxeer Reaper AIO V3 F745 45A BLS Bluejay 2-6S Foxeer Reaper AIO V3 F745 is an all-in-one flight controller designed for high performance FPV drones. This flight controller can handle voltages from 2 to 6S LiPo batteries and provides exceptional performance and reliability. It has larger solder pads and a more powerful power supply, offering flexibility and convenience for your FPV flying experience. Specifications: Model: FOXEER Reaper AIO V3 CPU: STM32F745 Power supply: 2-6S Lipo (8.4-25.2V) BEC Output: DC5V/2.5A OSD: BF OSD Black Box: 16M flash memory UART: 5 sets USB: Micro USB Fireware: BF:FOXE-FOXEERF745V3_AIO; Inv: FOXEERF745AIO V3 DJI/Vista connector: Supported, 7pin Size: 32.5 x 32.5 mm Mounting hole: 25.5x25.5mm, Φ3mm/M2 Weight (g): 8.9g Working temperature: -20°C - +55°C Working humidity: 20-95% Storage temperature: -20°C - +70°C ESC Programming: Bluejay (default)/BLHeli-S optional Stick Programming: Supported Current Sensor: Supported Current scale: 100 Input signal: Dshot300/600 Firmware: Bluejay: G-H-30-96-v0.16/ BLS:G-H-30 16.7 Continuous / inrush current: 45 A x 4 / 50 A x 4 Input voltage: 2-6S Lipo (8.4-25.2V) Telemetry: No The package includes: 1x Foxeer Reaper AIO V3
