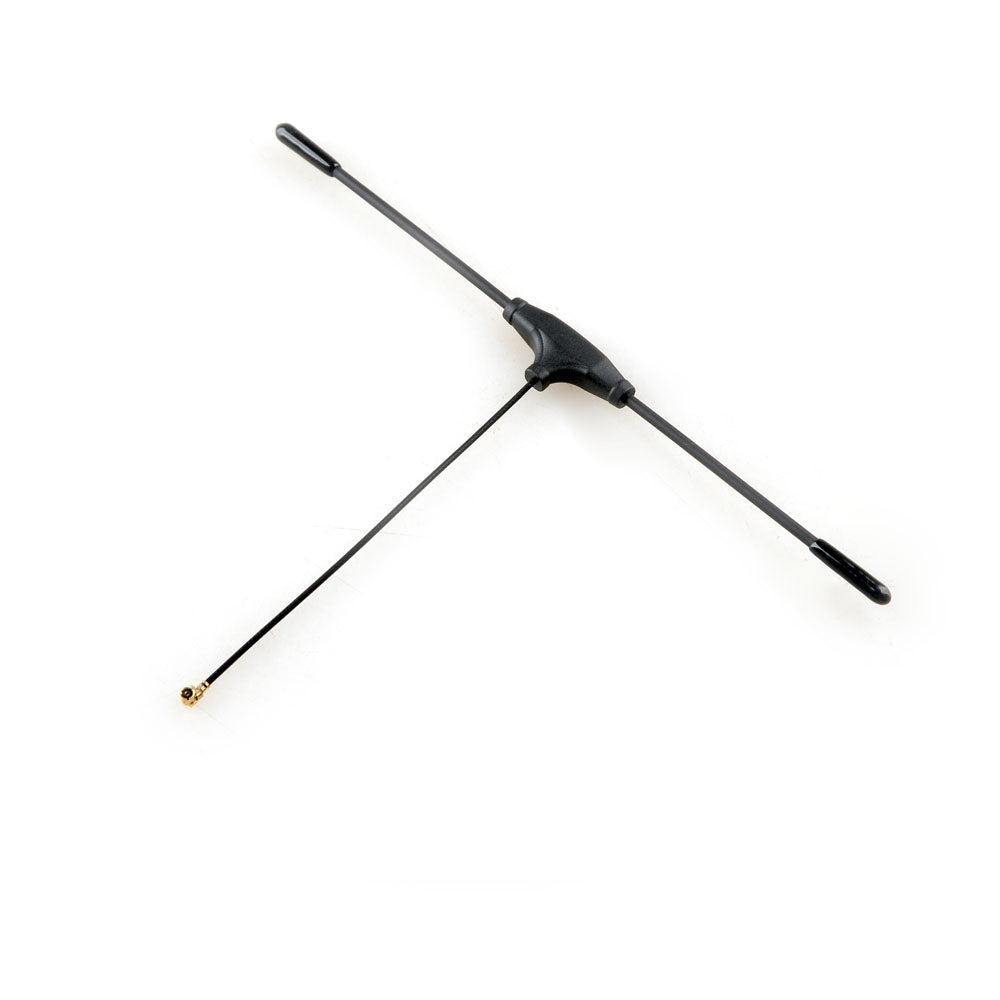

Adjustable antenna HappyModel ES900RX 960MHz - 2.4GHz
Compact and reliable antenna designed for seamless integration with HappyModel ES900RX systems. It can be specially tuned for optimal performance in the 960MHz - 2.4GHz frequency range, ensuring excellent signal quality and consistent performance, making it ideal for long-distance communications.
Features:
- Adjustable frequency: can be trimmed and tuned for a stable connection.

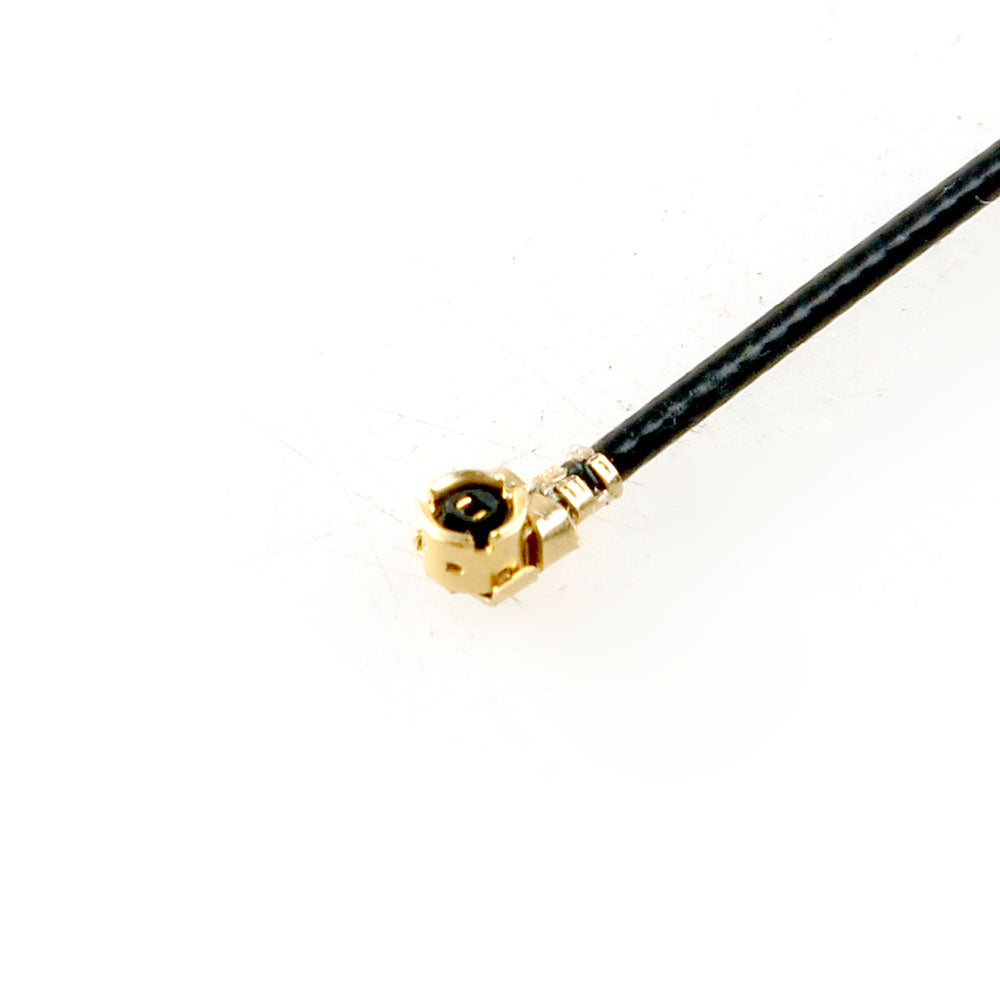

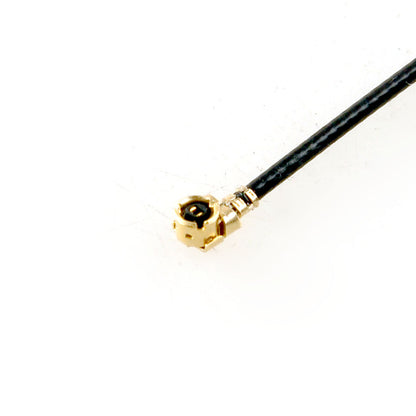

- IPEX1 connector: ensures easy and safe installation.
- Lightweight and durable construction: portability without compromising performance.
Shorten the antenna to the desired frequency:
960 MHz - 2.4 GHz, 300 MHz step.
Specifications:
Type: T-type antenna
Frequency range: 960 MHz - 2.4 GHz
Polarization: Polarization: Linear
Impedance: 50 Ω
Antenna gain: 2.5 dBi / 1.5 dBi
Operating temperature: -40 ℃ to 80 ℃
Humidity: 95% - 100%
RF cable: RG1.13
Connector: IPEX1

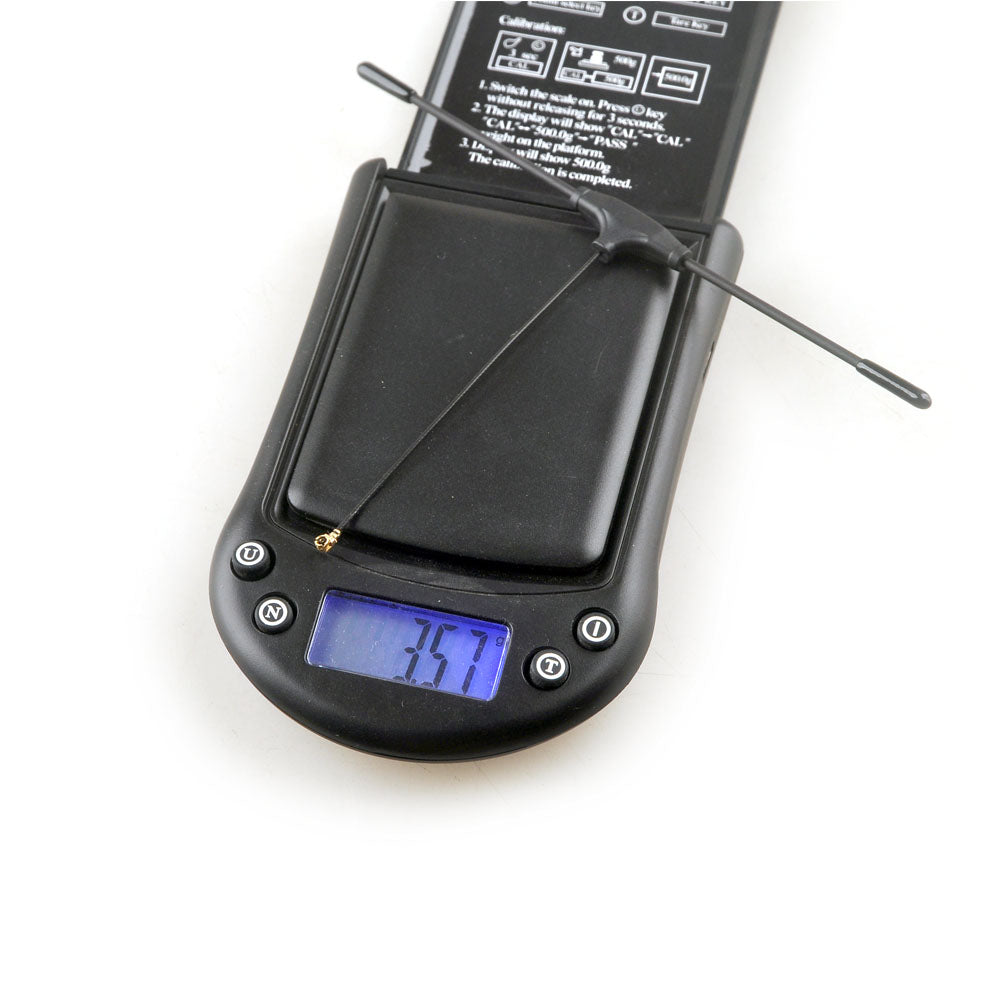

Weight: 3.57g
Cable length: 80mm
Cable width: 140mm
Package includes:
1x HappyModel ES900RX adjustable antenna (960MHz - 2.4GHz)
