ACCURACY 0.05 MM RESOLUTION 0.1 MM
Using high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more complex details.
ULTRA CLEAN TEXTURE MODE
Exactly reproduce the color and texture of your sneakers using high-fidelity texture mapping. Tips: Color models require a set of colors (part of the luxury combination).
BLACK ITEMS? NO PROBLEM
Near Infrared (NIR) has excellent optical compatibility so that even black objects are clearly visible. Mole now includes NIR in its configuration list, allowing it to produce excellent scanning results for objects of different colors.
INCREDIBLE SCANNING PERFORMANCE
Anti-shake optics and visual tracking algorithms ensure you get a complete and accurate model with every scan.
VISUAL TRACKING
Using visual tracking technology and our proprietary AI algorithm, Mole enables markerless scanning, saving you considerable time.
OPTICAL SHOCK MODULES
Equipped with anti-shake optical modules, Mole ensures smooth and stable scanning, even in manual mode, with high frame rate and minimal distortion..
CONVENIENT TO USE

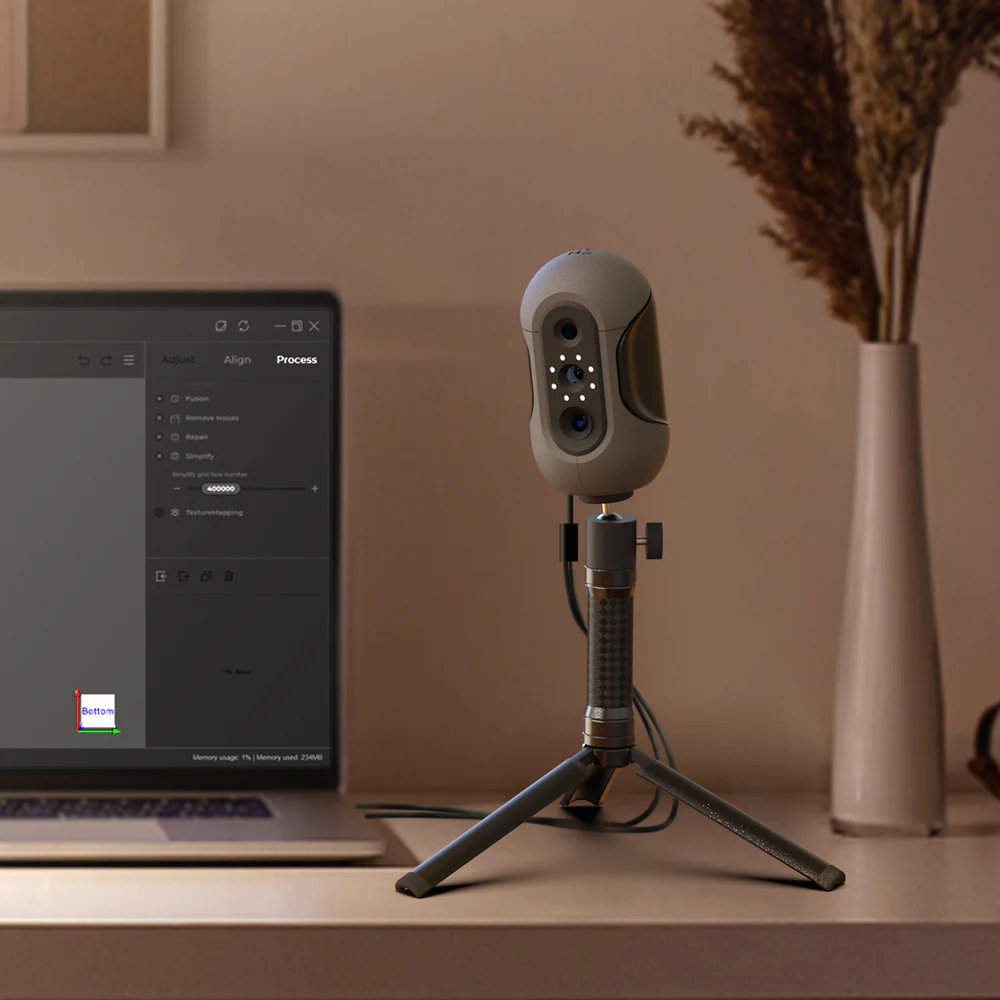

The Mole's compact and ergonomic design allows for easy scanning, whether in handheld or turntable mode. Its internal cooling fan operates quietly but significantly reduces temperature, ensuring that the Mole can work for longer periods of time.

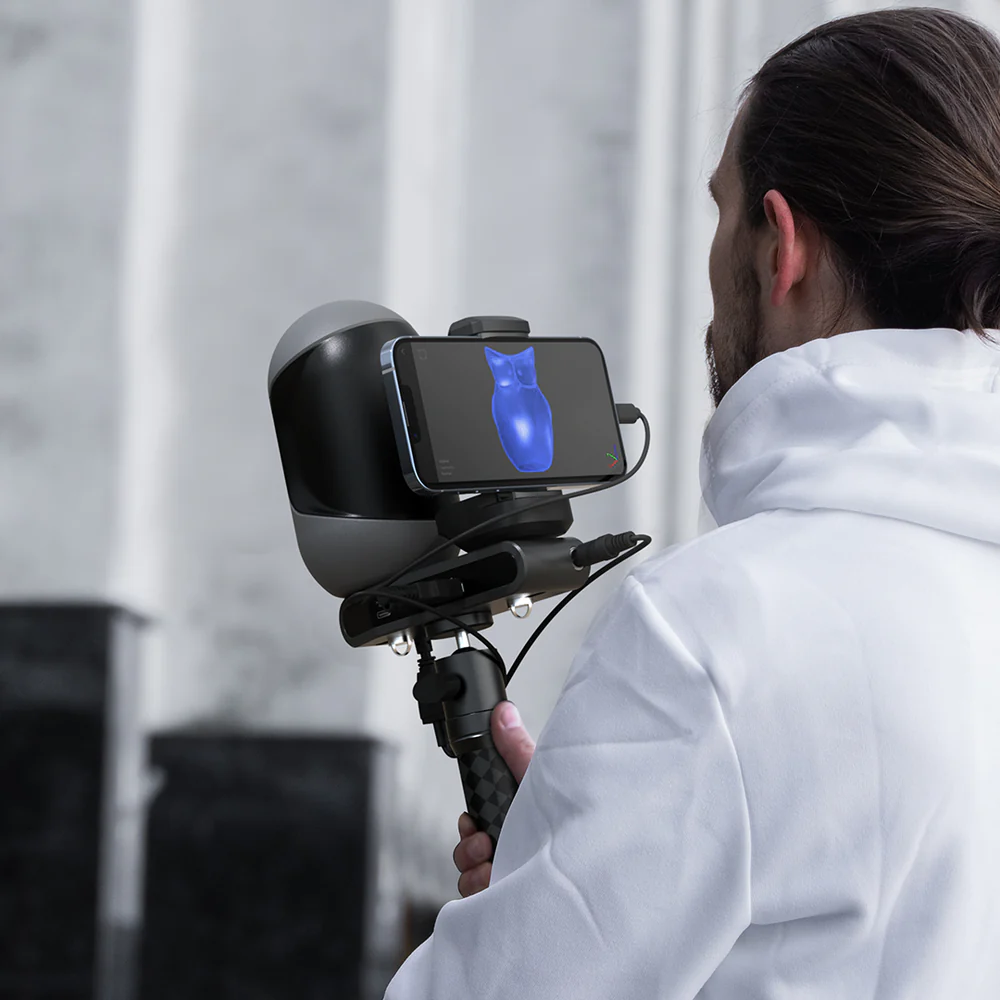

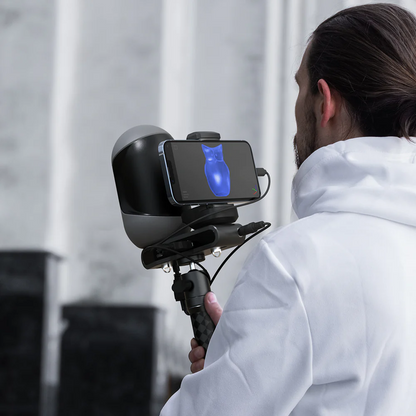

Adding CONNECT turns MOLE into a portable scanner
Introducing 3DMakerpro Connect, which is designed for portable and stable scanning actions. Enjoy the freedom of zero-limit scanning wherever and whenever you want.
Tips: Connection requires a powerbank with a 12V PD 22.5W Type C interface.
Powerful graphics chip
Chip for image processing 3DMakerpro Connect connects Mole to your mobile phone and ensures high quality scanning anywhere in the field.
Simple and reliable
3DMakerpro Connet quickly connects the "Mole", tripod, phone and power supply and you are ready to go at any time.
MADE FOR SCANNING
Android | iOS JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Coupled with Connect, you can now scan and get any 3D model you want anywhere.
Windows | MacOS JMStudio is a 3Dmakerpro exclusive software that handles multi-mode data acquisition, high resolution preview, texture mapping and 3D model generation for scanning devices.
Compatible software
TECHNICAL SPECIFICATION
Mole 3D Scanner
Scan performance parameters:
-
-
Accuracy: 0.05 mm
-
-
-
Resolution:0.1mm
-
-
-
Frame rate:10 frames per second
-
-
-
Tracking mode:Visual tracking
-
-
-
Working distance:150-400 mm
-
-
-
Range of one scan:200 x 100 mm
-
-
-
Minimum scan:15x15x15mm
-
Hardware parameters:
-
-
Light source:NIR
-
-
-
Texture Color:Extended Support
-
-
