Code: SKU:6208

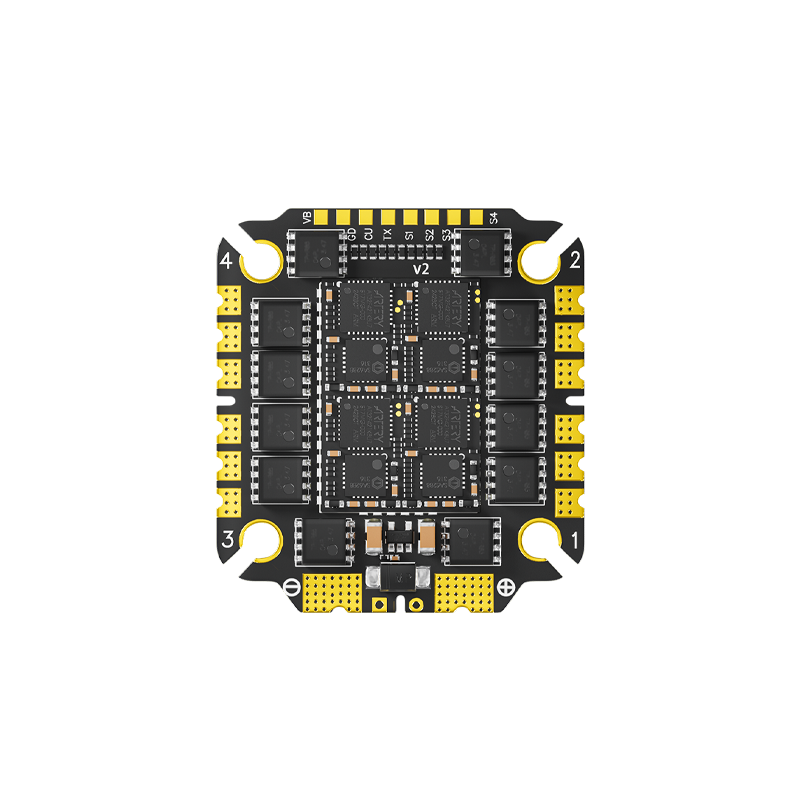

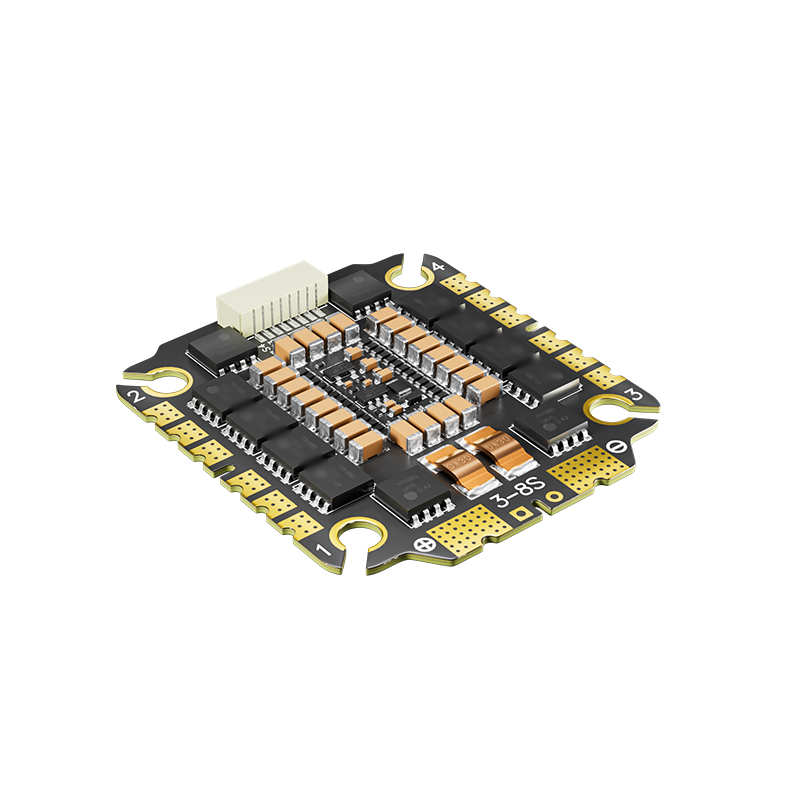

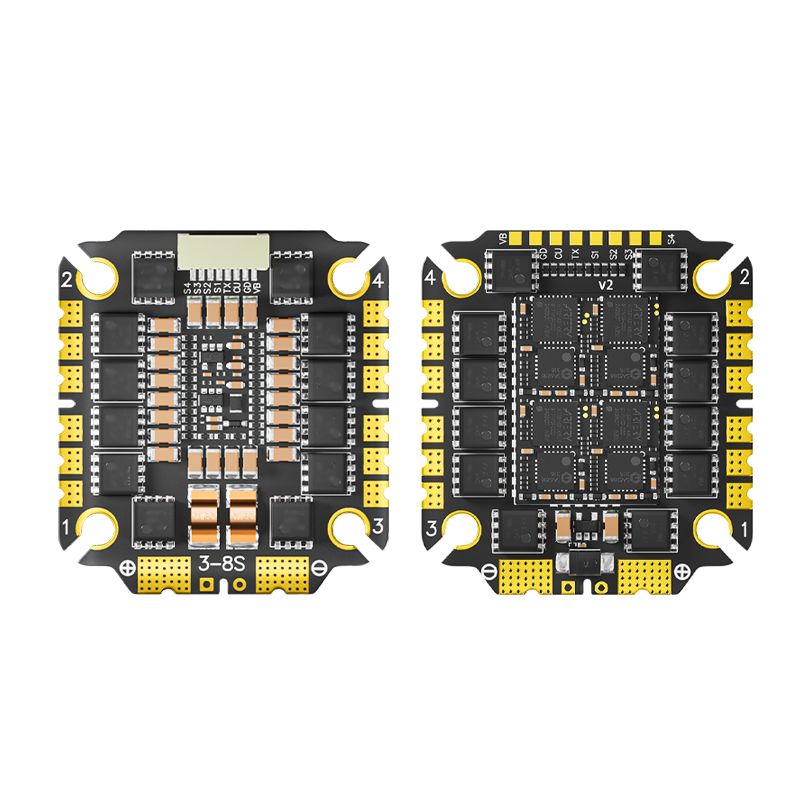

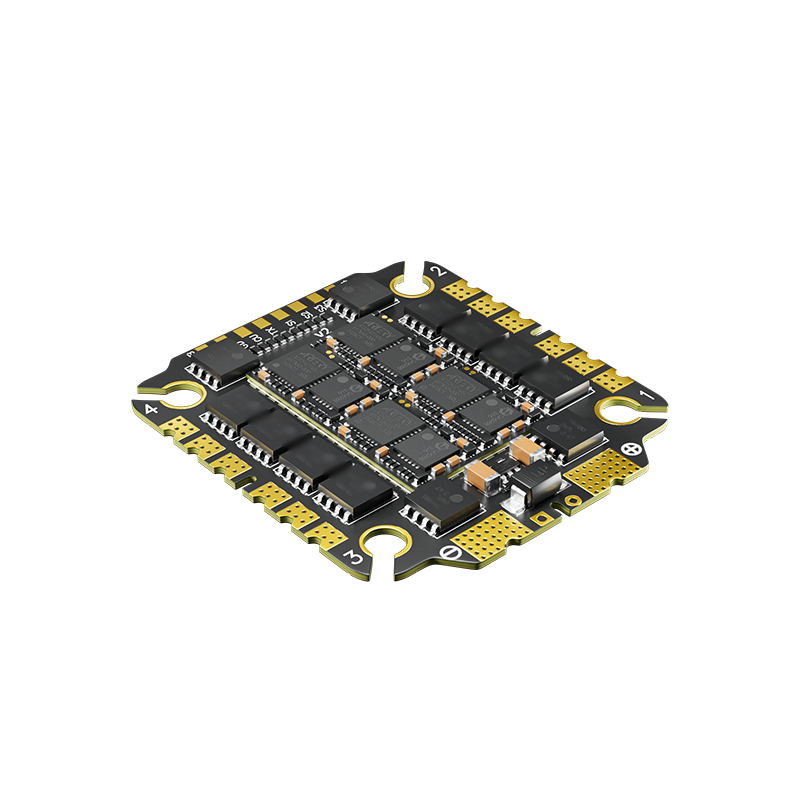

ЕSC 4in1 Pilotix 75A AM32
ЕSC 4in1 Pilotix 75A AM32
Brand: Pilotix
Regular price
€62,00
Regular price
€62,00
Sale price
€62,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

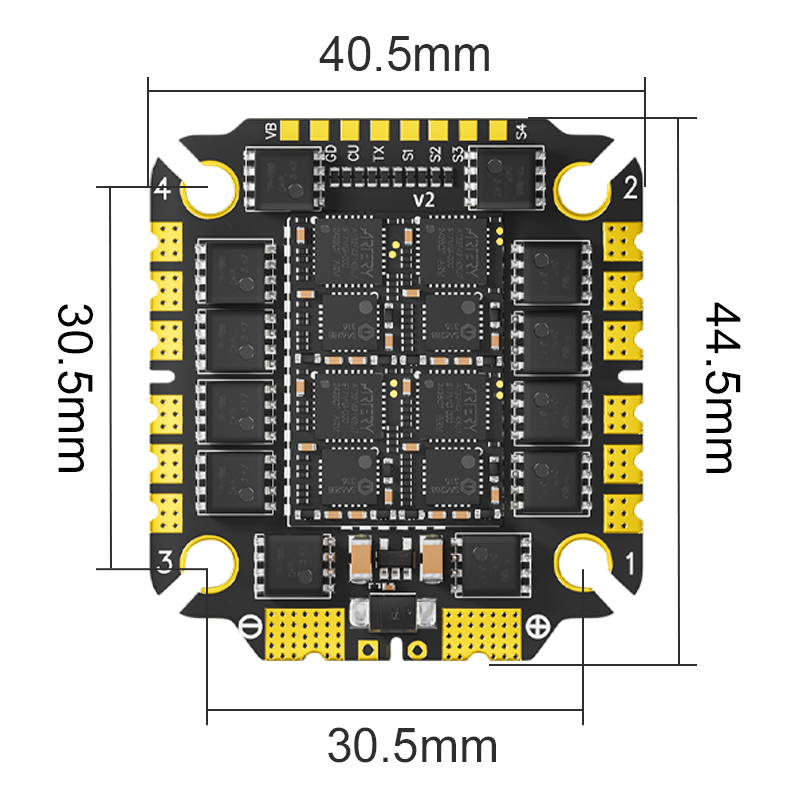

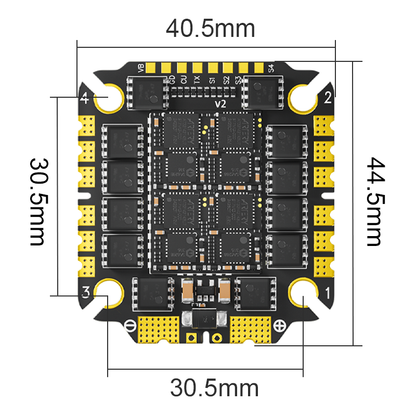

ЕSC 4in1 Pilotix 75A AM32 The Pilotix 3075 V2 is a high-performance 4-in-1 electronic speed controller designed for FPV drones requiring reliability and stable power supply. This ESC is made of high-quality MOSFET transistors and ceramic capacitors to ensure voltage resistance and strong overcurrent resistance, making your power system stable even under heavy load. It is equipped with an integrated ammeter and TVS protection for greater durability and safety. The ESC is powered by AM32 firmware, supports telemetry and wide input voltage range from 9V to 40V (3-8S LiPo). With a continuous maximum current of 75A per channel and a peak current of 85A per channel, it meets the requirements of powerful AC motors. Specifications: Firmware: AM32_AORC_K_A_F421_2.16.hex ESC programming: AM32 Continuous maximum current: 75A x 4 Current scaling: 85A x 4 Telemetry: Supported BEC: No Input Voltage: DC 9V-40V (3-8S LiPo) Working humidity: 20~95% Dimensions: Dimensions: 44.5mm x 40.5mm Mounting hole: M3 × 30.5mm × 30.5mm Weight: 15.8 g Input signal: DShot150/300/600 and MultiShot / OneShot The package contains: 1 x 3075 V2 ESC 1 x 35V 1000uF semiconductor electrolytic capacitor 4 x nuts 1 x 8PIN SH1.0 connecting line 4 x M3*8mm shock-absorbing balls 4 x M3*30mm metal screws 1 x XT60 power cable
