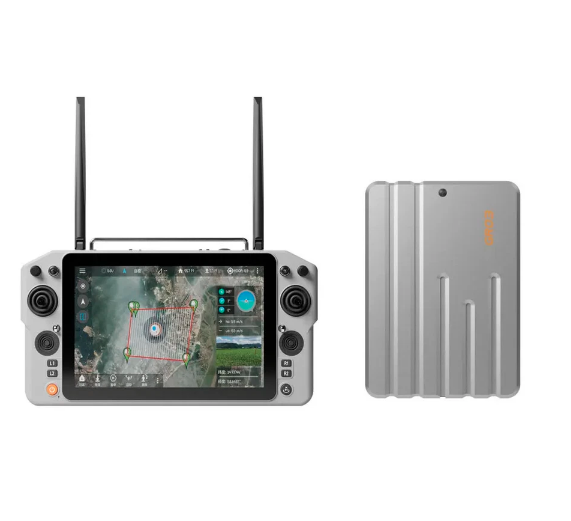

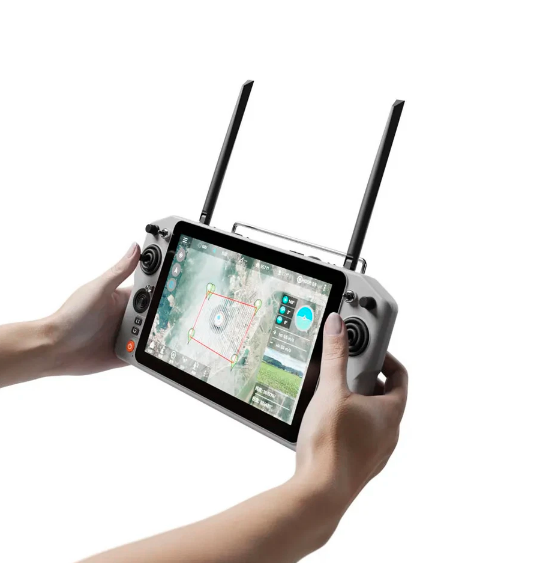

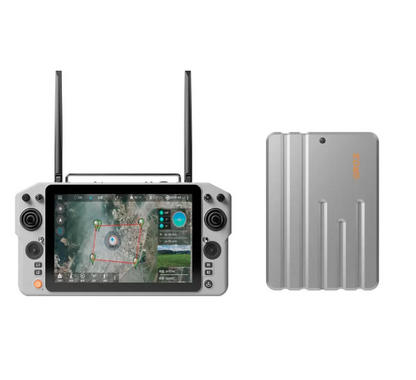

Skydroid G30+GR03 Controller The SkyDroid G30 with GR03 receiver is an advanced long-range remote control and video transmission system developed for professional unmanned aircraft and aerial applications. Built on the powerful Qualcomm Android platform, the G30 offers smooth system performance, reliable high-definition video hardware decoding, and seamless compatibility with a wide range of ground station software. Its large, sunlight-readable touchscreen display ensures clear visibility and intuitive control in outdoor environments, making it suitable for demanding field operations.

Designed for stable long-distance communication, the G30 supports dual-band operation at 2.4G and 5.8G frequencies with automatic frequency switching to maintain optimal signal quality. Combined with high-definition digital video transmission and optical communication support, the system ensures reliable data, control, and video connections even in complex electromagnetic environments. Combined with the GR03 universal receiver, this system provides flexible interface options, strong interference resistance, and reliable performance for professional UAV missions.

Features: - Android-based system ensures smooth operation and broad software compatibility - Large, sunlight-readable touchscreen display offers clear visibility in outdoor conditions - Dual-band communication provides stable signal and improved interference resistance - Supports high-definition digital video transmission with real-time clarity
- Fiber optic communication enables stable data transmission in high interference environments - Rich interface support allows flexible integration with various UAV platforms - Efficient power management ensures longer battery life with fast charging capability - GR03 receiver provides broad compatibility and reliable system performance

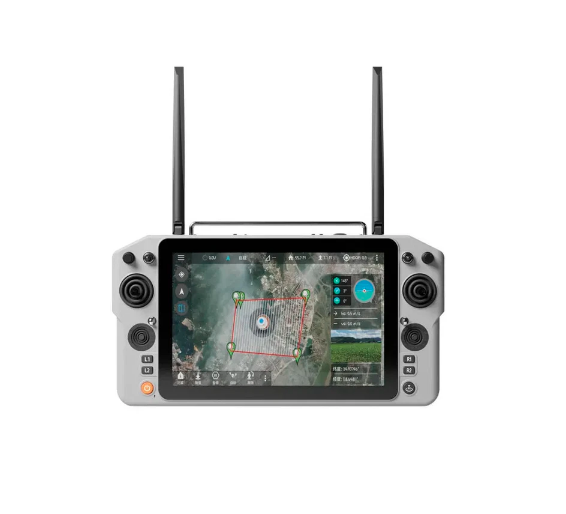

G30 Remote Controller Specifications: Display: 10.1-inch industrial touch screen + sunlight-readable display Processor: Qualcomm 6 nm processor Dimensions: 346 x 196.5 x 89.4 mm Battery: 20000 mAh
RAM: 8 GB Operating frequency band: 2.4 GHz/5.8 GHz Dynamic frequency band: automatic frequency hopping Remote control range: 5–30 km (ground-to-air, direct line of sight) Fiber optic range: 20 km
Screen resolution: 1920 x 1200 Computer type: Android 14 Weight: 1.5 kg Battery life: 6–8 hours System storage: 128 GB Number of channels: 16 RF power: 23 dBm Operating temperature: -10 °C to 55 °C

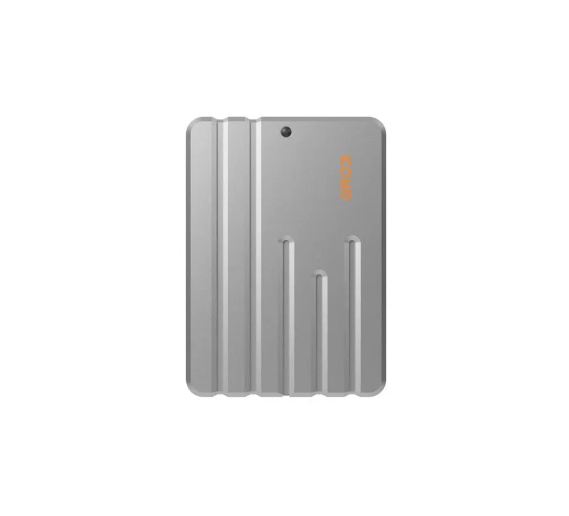

Charging interface: TYPE-C External interface: USB port, SIM card slot, TYPE-C/DP port, Ethernet port, PPM port, FC port GR03 receiver specifications: Operating frequency band: 2.4 GHz/5.8 GHz Supply voltage: 7.2 V~72 V (XT30) Data transfer port: 2 channels Ethernet port: 2 channels FC interface: 1 channel PWM interface: 3 channels Audio output: 1 channel Serial port transfer speed: 57600/115200/921600
Operating current: 12 V/350 mA SBUS input: 1 channel Dimensions: 58.7 x 82 x 20 mm Weight: 120 g Operating temperature: -10 °C to 60 °C RF power: 23 dBm@CE/FCC
Transmission speed: Upload speed: 200 kbps. Recording mode can be activated with a maximum speed of up to 1.2 Mbps. Download speed: 10 Mbps. The maximum speed can reach 20 Mbps, which requires customization. Note: Activating this mode will affect the communication distance; it is recommended for short-distance use.
Channel bandwidth: 1.25 MHz/ 2.5 MHz/ 5 MHz/ 10 MHz/ 20 MHz/ 40 MHz Package includes: 1x SkyDroid G30 controller 1x SkyDroid GR03 receiver
